| Manufacturer Part Number: | IXDN55N120D1 |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module NPT Single 1200V 100A 450W Chassis Mount SOT-227B |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXDN55N120D1 Datasheet |
| Internal Part Number | 898-IXDN55N120D1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | IXDN High Voltage IGBT Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | IXYS | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | NPT | |
| Configuration | Single | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 100A | |
| Power - Max | 450W | |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 55A | |
| Current - Collector Cutoff (Max) | 3.8mA | |
| Input Capacitance (Cies) @ Vce | 3.3nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |

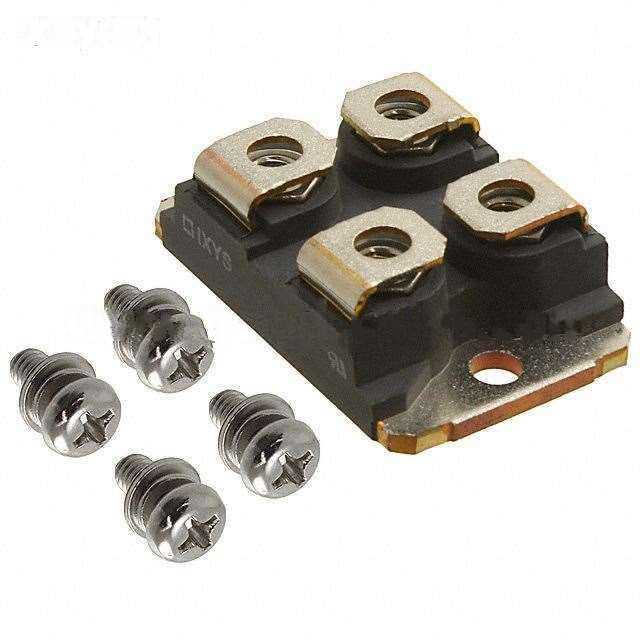

| Package / Case | SOT-227-4, miniBLOC | |
| Supplier Device Package | SOT-227B | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXDN55N120D1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXDN55N120D1 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXDN55N120D1 is new and unused, you can buy IXDN55N120D1 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXDN55N120D1.
