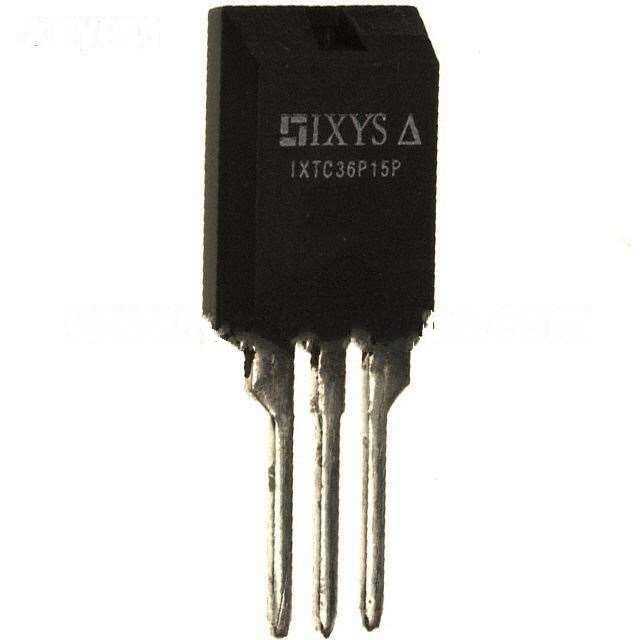

Manufacturer Part Number: | IXTC36P15P |
---|---|
Manufacturer: | IXYS |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET P-CH 150V 22A ISOPLUS220 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IXTC36P15P Datasheet |
Internal Part Number | 898-IXTC36P15P | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 13/Dec/2013 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | IXYS | |
Series | PolarP™ | |
Packaging | Tube | |
Part Status | Obsolete | |
FET Type | MOSFET P-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 150V | |
Current - Continuous Drain (Id) @ 25°C | 22A (Tc) | |
Rds On (Max) @ Id, Vgs | 120 mOhm @ 18A, 10V | |
Vgs(th) (Max) @ Id | 5V @ 250µA | |
Gate Charge (Qg) @ Vgs | 55nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 2950pF @ 25V | |
Power - Max | 150W | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |
Package / Case | ISOPLUS220™ | |
Supplier Device Package | ISOPLUS220™ | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IXTC36P15P | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IXTC36P15P is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXTC36P15P is new and unused, you can buy IXTC36P15P IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXTC36P15P.
