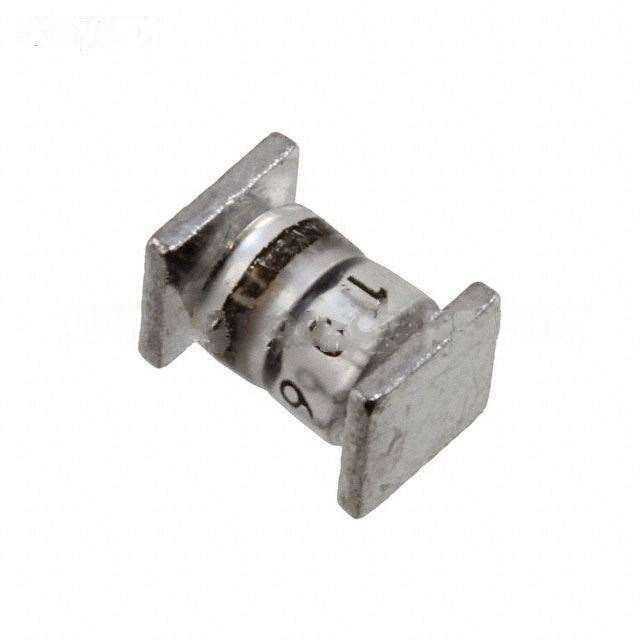

| Manufacturer Part Number: | JANS1N4971US |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Zener - Single |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |
| Description: | Zener Diode 36V 5W ±5% Surface Mount D-5B |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANS1N4971US Datasheet |
| Internal Part Number | 898-JANS1N4971US | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Online Catalog | Glass Zener Diodes - Military, MIL-PRF | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Zener - Single | |
| Manufacturer | Microsemi IRE Division | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Voltage - Zener (Nom) (Vz) | 36V | |
| Tolerance | ±5% | |
| Power - Max | 5W | |
| Impedance (Max) (Zzt) | 11 Ohm | |
| Current - Reverse Leakage @ Vr | 2µA @ 27.4V | |
| Voltage - Forward (Vf) (Max) @ If | 1.5V @ 1A | |
| Operating Temperature | -65°C ~ 175°C | |
| Mounting Type | Surface Mount | |
| Package / Case | SQ-MELF, B | |
| Supplier Device Package | D-5B | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANS1N4971US | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANS1N4971US is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANS1N4971US is new and unused, you can buy JANS1N4971US Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANS1N4971US.
