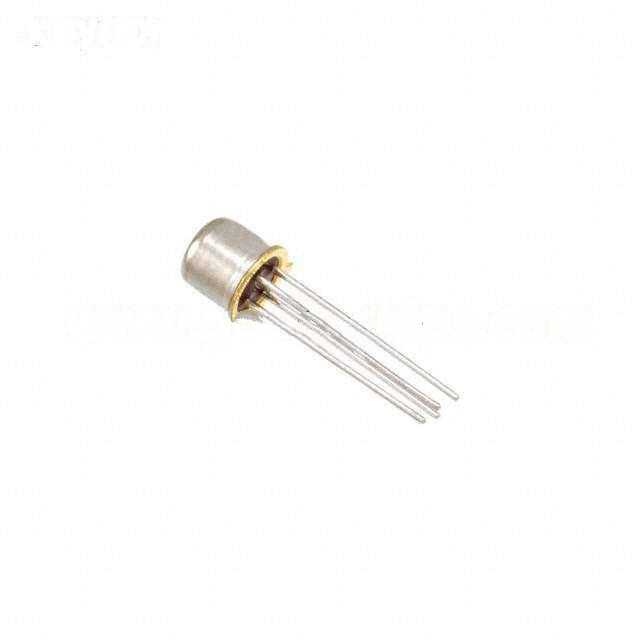

| Manufacturer Part Number: | JANTX2N2857 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - Bipolar (BJT) - RF |
| Available Quantity: | 9037 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Transistor NPN 15V 40mA 500MHz 200mW Through Hole TO-72 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTX2N2857 Datasheet |
| Internal Part Number | 898-JANTX2N2857 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - RF | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/343 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Transistor Type | NPN | |
| Voltage - Collector Emitter Breakdown (Max) | 15V | |
| Frequency - Transition | 500MHz | |
| Noise Figure (dB Typ @ f) | 4.5dB @ 450MHz | |
| Gain | 12.5dB ~ 21dB @ 450MHz | |
| Power - Max | 200mW | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 3mA, 1V | |
| Current - Collector (Ic) (Max) | 40mA | |
| Mounting Type | Through Hole | |
| Package / Case | TO-72-3 Metal Can | |
| Supplier Device Package | TO-72 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTX2N2857 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTX2N2857 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTX2N2857 is new and unused, you can buy JANTX2N2857 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTX2N2857.
