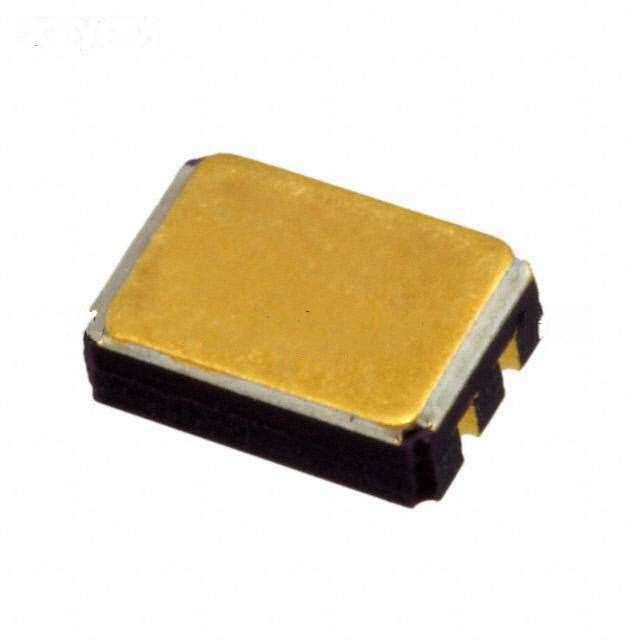

| Manufacturer Part Number: | JANTXV2N2222AUA |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 9113 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN 50V 0.8A |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTXV2N2222AUA Datasheet |
| Internal Part Number | 898-JANTXV2N2222AUA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Online Catalog | NPN Transistors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/255 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Transistor Type | NPN | |
| Current - Collector (Ic) (Max) | 800mA | |
| Voltage - Collector Emitter Breakdown (Max) | 50V | |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA | |
| Current - Collector Cutoff (Max) | 50nA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V | |
| Power - Max | 500mW | |
| Frequency - Transition | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, No Lead | |
| Supplier Device Package | 4-SMD | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTXV2N2222AUA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTXV2N2222AUA is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTXV2N2222AUA is new and unused, you can buy JANTXV2N2222AUA Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTXV2N2222AUA.
