| Manufacturer Part Number: | KAD5612P-12Q72 |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Data Acquisition - Analog to Digital Converters (ADC) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 12 Bit Analog to Digital Converter 2 Input 1 SAR 72-QFN (10x10) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KAD5612P-12Q72 Datasheet |
| Internal Part Number | 898-KAD5612P-12Q72 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | KAD5612Pyy DataSheet Spec Chg 27/May/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Analog to Digital Converters (ADC) | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Number of Bits | 12 | |
| Sampling Rate (Per Second) | 125M | |
| Number of Inputs | 2 | |
| Input Type | Differential | |
| Data Interface | LVDS - Parallel, Parallel | |
| Configuration | S/H-ADC | |
| Ratio - S/H:ADC | 1:1 | |
| Number of A/D Converters | 1 | |
| Architecture | SAR | |
| Reference Type | Internal | |
| Voltage - Supply, Analog | 1.7 V ~ 1.9 V | |
| Voltage - Supply, Digital | 1.7 V ~ 1.9 V | |
| Features | - | |
| Operating Temperature | -40°C ~ 85°C | |

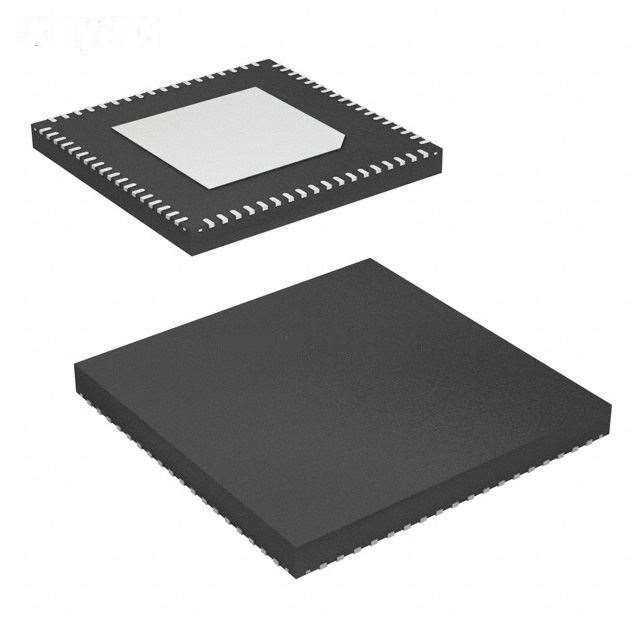

| Package / Case | 72-VFQFN Exposed Pad | |
| Supplier Device Package | 72-QFN (10x10) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KAD5612P-12Q72 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KAD5612P-12Q72 is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of KAD5612P-12Q72 is new and unused, you can buy KAD5612P-12Q72 Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KAD5612P-12Q72.
