| Manufacturer Part Number: | KSZ8842-PMBL-AM |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Interface - Controllers |
| Available Quantity: | 9214 Pieces |
| Unit Price: | Quote by Email |
| Description: | Ethernet Switch 10/100 Base-T/TX PHY PCI Interface |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KSZ8842-PMBL-AM Datasheet |
| Internal Part Number | 898-KSZ8842-PMBL-AM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | PHY Speed and Duplex Configuration QoS Priority Support In the KSZ8842 Family PCB Design Considerations for KSZ8841/42 Family of Ethernet Controllers General PCB Design and Layout Guidelines Capacitive Coupling Ethernet Transceivers without Using Transformers Ethernet over POF Interfacing Fast Ethernet to Processors Fast Ethernet: Delivery of Data in Industrial Applications Reducing Maintenance Costs With Cable Diagnosis and Micrel’s LinkMD™ Virtual LAN EtherSynch™ - Synchronization Perfected Get in Sync! Unmanaged Ethernet Redundant Ring | |
| PCN Part Number | Micrel to Microchip PN Changes 7/Oct/2015 | |
| Online Catalog | Ethernet Controllers | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Controllers | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Protocol | Ethernet | |
| Function | Switch | |
| Interface | PCI | |
| Standards | 10/100 Base-T/TX PHY | |
| Voltage - Supply | 3.1 V ~ 3.5 V | |
| Current - Supply | 122mA | |
| Operating Temperature | -40°C ~ 85°C | |

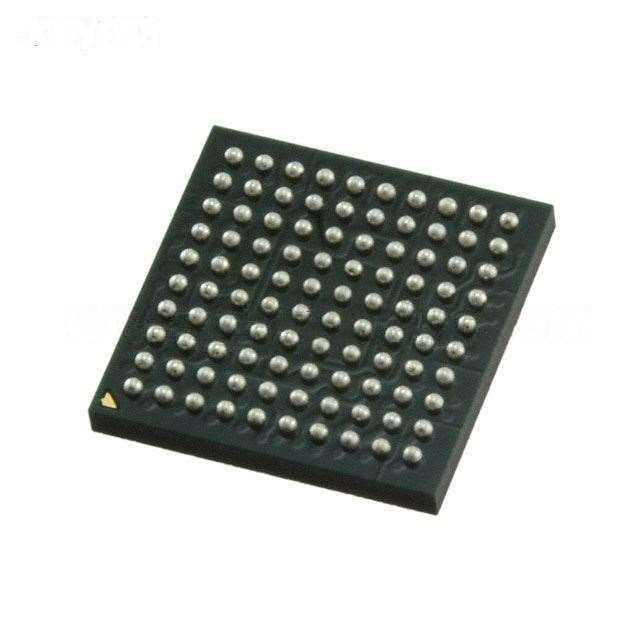

| Package / Case | 100-LFBGA | |
| Supplier Device Package | * | |
| Standard Package | 260 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KSZ8842-PMBL-AM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KSZ8842-PMBL-AM is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of KSZ8842-PMBL-AM is new and unused, you can buy KSZ8842-PMBL-AM Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KSZ8842-PMBL-AM.
