| Manufacturer Part Number: | LM5105SDX/NOPB |
|---|---|
| Manufacturer: | T-I |
| Product Category: | PMIC - Gate Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC DVR GATE HALF BRIDGE 10WSON |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LM5105SDX/NOPB Datasheet |
| Internal Part Number | 898-LM5105SDX/NOPB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Qualification Assembly/Test Site 27/Dec/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Gate Drivers | |
| Manufacturer | T I | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Driven Configuration | Half-Bridge | |
| Channel Type | Synchronous | |
| Number of Drivers | 2 | |
| Gate Type | N-Channel MOSFET | |
| Voltage - Supply | 8 V ~ 14 V | |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V | |
| Current - Peak Output (Source, Sink) | 1.8A, 1.8A | |
| Input Type | Non-Inverting | |
| High Side Voltage - Max (Bootstrap) | 118V | |
| Rise / Fall Time (Typ) | 15ns, 15ns | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

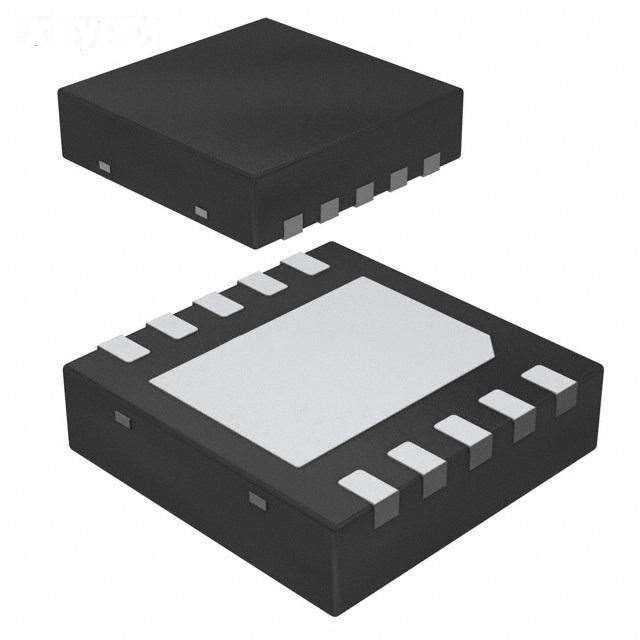

| Package / Case | 10-WDFN Exposed Pad | |
| Supplier Device Package | 10-WSON (4x4) | |
| Standard Package | 4,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LM5105SDX/NOPB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LM5105SDX/NOPB is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of LM5105SDX/NOPB is new and unused, you can buy LM5105SDX/NOPB T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LM5105SDX/NOPB.
