| Manufacturer Part Number: | LT3009EDC#TRMPBF |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Adjustable 1 Output 0.6 V ~ 19.5 V 20mA 6-DFN (2x2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LT3009EDC#TRMPBF Datasheet |
| Internal Part Number | 898-LT3009EDC#TRMPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LT3009 - 3µA IQ, 20mA Low Dropout Linear Regulator Low Dropout Linear Regulator Frequently Asked Questions | |
| Video File | LT3009 | |
| Online Catalog | 10V(Max) to 20V(Max) | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Regulator Topology | Positive Adjustable | |
| Voltage - Output | 0.6 V ~ 19.5 V | |
| Current - Output | 20mA | |
| Voltage - Dropout (Typical) | 0.28V @ 20mA | |
| Number of Regulators | 1 | |
| Voltage - Input | 1.6 V ~ 20 V | |
| Current - Limit (Min) | 22mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

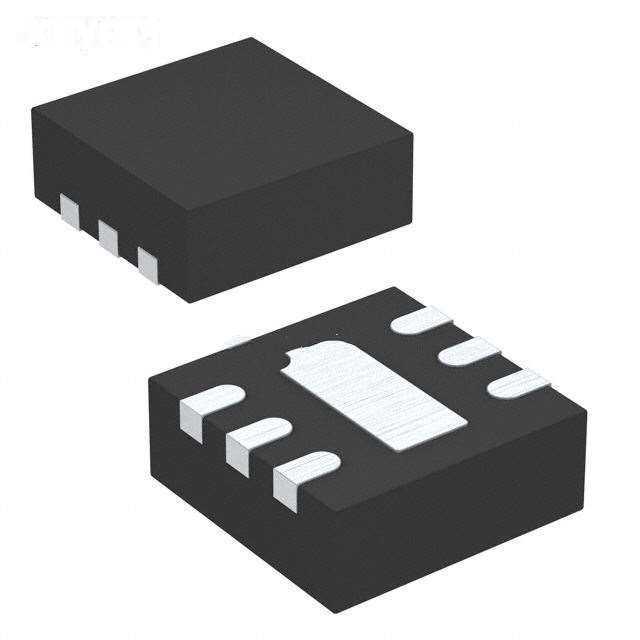

| Package / Case | 6-WFDFN Exposed Pad | |
| Supplier Device Package | 6-DFN (2x2) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LT3009EDC#TRMPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LT3009EDC#TRMPBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LT3009EDC#TRMPBF is new and unused, you can buy LT3009EDC#TRMPBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LT3009EDC#TRMPBF.
