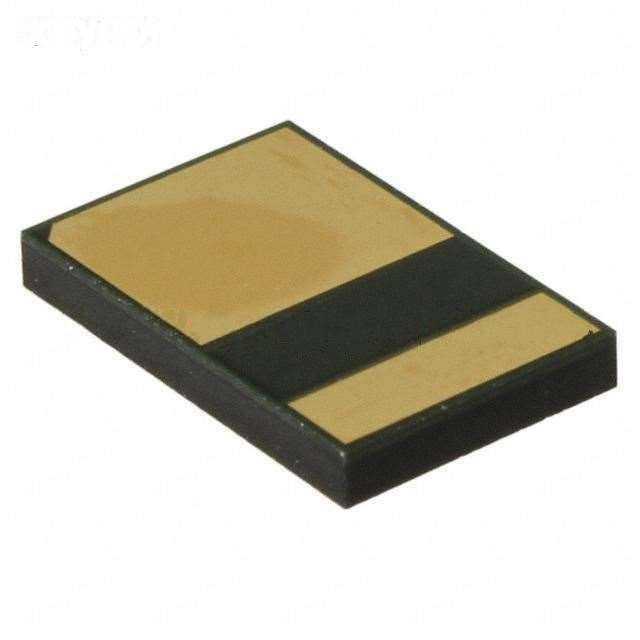

| Manufacturer Part Number: | LX2400ILG |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Standard 24V 25A (DC) Surface Mount 2-LGA (7.5x11.5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LX2400ILG Datasheet |
| Internal Part Number | 898-LX2400ILG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 20/Mar/2014 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Microsemi Corporation | |
| Series | IDEALSolar™ | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 24V | |
| Current - Average Rectified (Io) | 25A (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 65mV @ 10A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 250µA @ 20V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-LLGA | |
| Supplier Device Package | 2-LGA (7.5x11.5) | |
| Operating Temperature - Junction | -55°C ~ 225°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LX2400ILG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LX2400ILG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of LX2400ILG is new and unused, you can buy LX2400ILG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LX2400ILG.
