| Manufacturer Part Number: | M5010012F |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Thyristors - SCRs - Modules |
| Available Quantity: | 9027 Pieces |
| Unit Price: | Quote by Email |

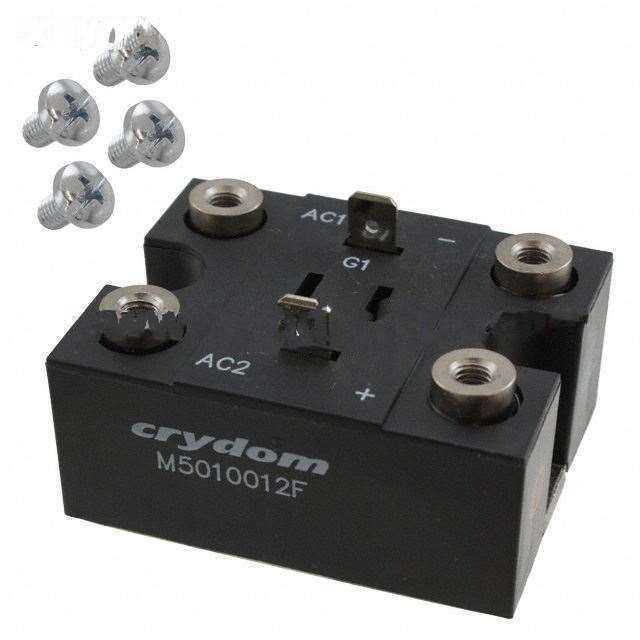

| Description: | SCR Module 600V 100A (DC) Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M5010012F Datasheet |
| Internal Part Number | 898-M5010012F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SCR Module Selection Guide Declaration of Conformity | |
| 3D Model | M50 Series, Circuit 1,2,4,5,6 &7.sat M50 Series, Circuit 1,2,4,5,6 &7.dwg M50 Series, Circuit 1,2,4,5,6 &7.stp | |
| Online Catalog | M25, M50 Series | |
| Category | Discrete Semiconductor Products | |
| Family | Thyristors - SCRs - Modules | |
| Manufacturer | Crydom Co. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) | |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes | |
| Voltage - Off State | 600V | |
| Current - Gate Trigger (Igt) (Max) | 150mA | |
| Current - On State (It (AV)) (Max) | - | |
| Current - On State (It (RMS)) (Max) | 100A (DC) | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1500A @ 60Hz | |
| Current - Hold (Ih) (Max) | - | |
| Mounting Type | Chassis Mount | |
| Package / Case | Module | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M5010012F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M5010012F is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of M5010012F is new and unused, you can buy M5010012F Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M5010012F.
