| Manufacturer Part Number: | MADP-011048-TR3000 |
|---|---|
| Manufacturer: | M/A-Com Technology Solutions |
| Product Category: | Diodes - RF |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

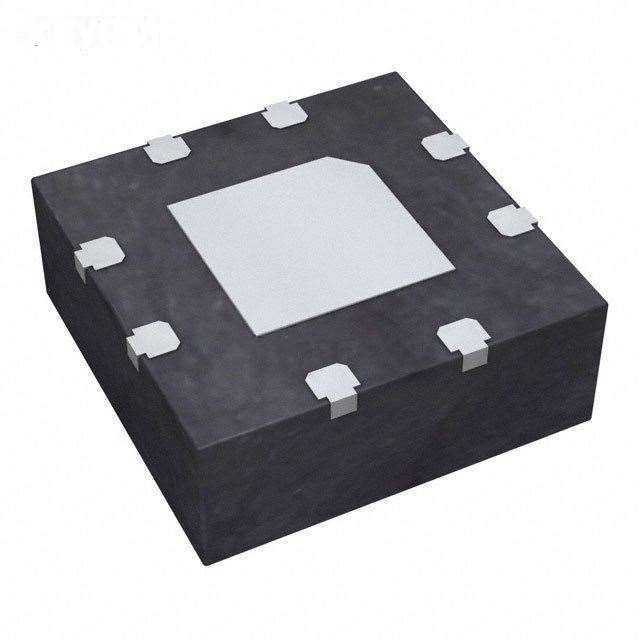

| Description: | RF Diode PIN - Anti-Parallel 80V 3.75A 4.7W 8-QFN EP (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MADP-011048-TR3000 Datasheet |
| Internal Part Number | 898-MADP-011048-TR3000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Test Site 09/Mar/2016 | |
| Online Catalog | PIN Diodes | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - RF | |
| Manufacturer | M/A-Com Technology Solutions | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | PIN - Anti-Parallel | |
| Voltage - Peak Reverse (Max) | 80V | |
| Current - Max | 3.75A | |
| Capacitance @ Vr, F | 4pF @ 0V, 100MHz | |
| Resistance @ If, F | 500 mOhm @ 10mA, 100MHz | |
| Power Dissipation (Max) | 4.7W | |
| Package / Case | 8-LQFN | |
| Supplier Device Package | 8-QFN EP (4x4) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MADP-011048-TR3000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MADP-011048-TR3000 is in stock for immediate shipping now. We are the distributor of M/A-Com Technology Solutions all series components. The condition of MADP-011048-TR3000 is new and unused, you can buy MADP-011048-TR3000 M/A-Com Technology Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MADP-011048-TR3000.
