| Manufacturer Part Number: | MAX4800CXZ+ |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 8 Circuit IC Switch 1:1 38 Ohm 72-CSBGA (6.0x5.3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAX4800CXZ+ Datasheet |
| Internal Part Number | 898-MAX4800CXZ+ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Selecting the Right CMOS Analog Switch | |
| Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Switch Circuit | SPST - NO | |
| Multiplexer/Demultiplexer Circuit | 1:1 | |
| Number of Circuits | 8 | |
| On-State Resistance (Max) | 38 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 1.9 Ohm | |
| Voltage - Supply, Single (V+) | 2.7 V ~ 13.2 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 5µs, 5µs | |
| -3db Bandwidth | - | |
| Charge Injection | 820pC | |
| Channel Capacitance (CS(off), CD(off)) | 18pF | |
| Current - Leakage (IS(off)) (Max) | 4µA | |
| Crosstalk | -80dB @ 5MHz | |
| Operating Temperature | 0°C ~ 70°C (TA) | |

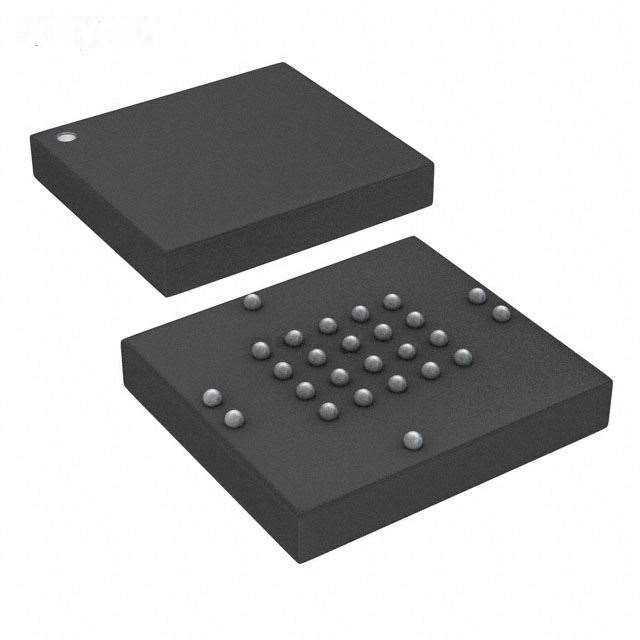

| Package / Case | 72-LFBGA, CSBGA | |
| Supplier Device Package | 72-CSBGA (6.0x5.3) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAX4800CXZ+ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAX4800CXZ+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX4800CXZ+ is new and unused, you can buy MAX4800CXZ+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX4800CXZ+.
