| Manufacturer Part Number: | MAX547BCMH+T |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Data Acquisition - Digital to Analog Converters (DAC) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

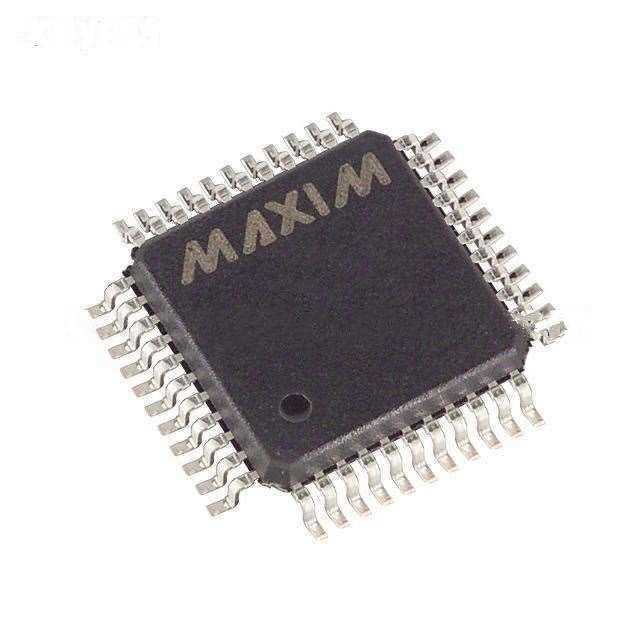

| Description: | 13 Bit Digital to Analog Converter 8 44-MQFP (10x10) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAX547BCMH+T Datasheet |
| Internal Part Number | 898-MAX547BCMH+T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Damage from a Lightning Bolt or a Spark How Signal Chains and PLCs Impact Our Lives | |
| Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Digital to Analog Converters (DAC) | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Bits | 13 | |
| Number of D/A Converters | 8 | |
| Settling Time | 5µs (Typ) | |
| Output Type | Voltage - Buffered | |
| Differential Output | No | |
| Data Interface | Parallel | |
| Reference Type | External | |
| Voltage - Supply, Analog | ±5V | |
| Voltage - Supply, Digital | - | |
| INL/DNL (LSB) | ±0.5, ±1 (Max) | |
| Architecture | R-2R | |
| Operating Temperature | 0°C ~ 70°C | |
| Package / Case | 44-QFP | |
| Supplier Device Package | 44-MQFP (10x10) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAX547BCMH+T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAX547BCMH+T is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX547BCMH+T is new and unused, you can buy MAX547BCMH+T Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX547BCMH+T.
