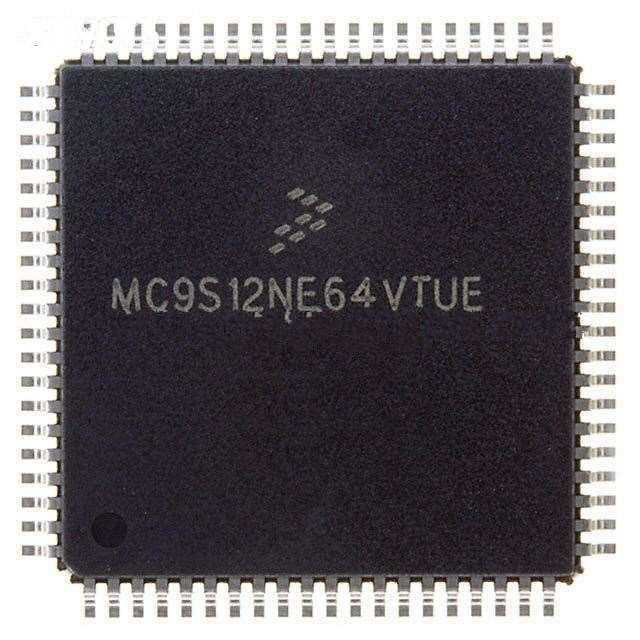

| Manufacturer Part Number: | MC9S12NE64VTU |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | HCS12 HCS12 Microcontroller IC 16-Bit 25MHz 64KB (64K x 8) FLASH 80-TQFP-EP (14x14) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MC9S12NE64VTU Datasheet |
| Internal Part Number | 898-MC9S12NE64VTU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | MC9S12NE64 Integrated Ethernet Controller Implementing an Ethernet Interface with the MC9S12NE64 Web Server Development with MC9S12NE64 and Open TCP | |
| Design Resources | Development Tool Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | HCS12 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Core Processor | HCS12 | |
| Core Size | 16-Bit | |
| Speed | 25MHz | |
| Connectivity | EBI/EMI, Ethernet, I²C, SCI, SPI | |
| Peripherals | POR, PWM, WDT | |
| Number of I/O | 38 | |
| Program Memory Size | 64KB (64K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 8K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.375 V ~ 3.465 V | |
| Data Converters | A/D 8x10b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 105°C (TA) | |
| Package / Case | 80-TQFP Exposed Pad | |
| Supplier Device Package | 80-TQFP-EP (14x14) | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MC9S12NE64VTU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MC9S12NE64VTU is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MC9S12NE64VTU is new and unused, you can buy MC9S12NE64VTU NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MC9S12NE64VTU.
