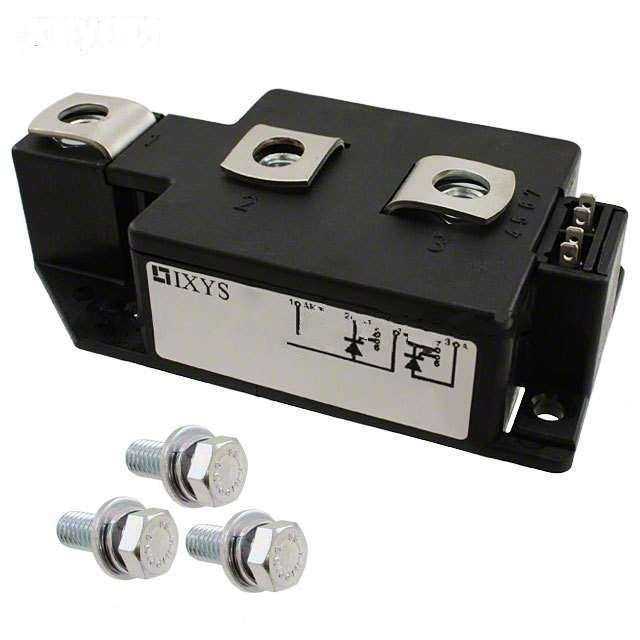

| Manufacturer Part Number: | MCC220-16IO1 |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Thyristors - SCRs - Modules |
| Available Quantity: | 9028 Pieces |
| Unit Price: | Quote by Email |
| Description: | SCR Module 1600V 400A Series Connection - All SCRs Chassis Mount Y2-DCB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCC220-16IO1 Datasheet |
| Internal Part Number | 898-MCC220-16IO1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SCR Module Selection Guide | |
| Online Catalog | MCC, MCD Series | |
| Category | Discrete Semiconductor Products | |
| Family | Thyristors - SCRs - Modules | |
| Manufacturer | IXYS | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Structure | Series Connection - All SCRs | |
| Number of SCRs, Diodes | 2 SCRs | |
| Voltage - Off State | 1600V | |
| Current - Gate Trigger (Igt) (Max) | 150mA | |
| Current - On State (It (AV)) (Max) | 250A | |
| Current - On State (It (RMS)) (Max) | 400A | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8500A, 9000A | |
| Current - Hold (Ih) (Max) | 150mA | |
| Mounting Type | Chassis Mount | |
| Package / Case | Y2-DCB | |
| Standard Package | 2 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCC220-16IO1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCC220-16IO1 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of MCC220-16IO1 is new and unused, you can buy MCC220-16IO1 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCC220-16IO1.
