Manufacturer Part Number: | MCH6331-TL-W |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET P-CH 30V 3.5A MCPH6 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MCH6331-TL-W Datasheet |
Internal Part Number | 898-MCH6331-TL-W | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | P-Channel Logic Level Gate FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | ON Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET P-Channel, Metal Oxide | |
FET Feature | Logic Level Gate, 4V Drive | |
Drain to Source Voltage (Vdss) | 30V | |
Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) | |
Rds On (Max) @ Id, Vgs | 98 mOhm @ 1.5A, 10V | |
Vgs(th) (Max) @ Id | 2.6V @ 1mA | |
Gate Charge (Qg) @ Vgs | 5nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 250pF @ 10V | |
Power - Max | 1.5W | |
Operating Temperature | 150°C (TJ) | |
Mounting Type | Surface Mount | |

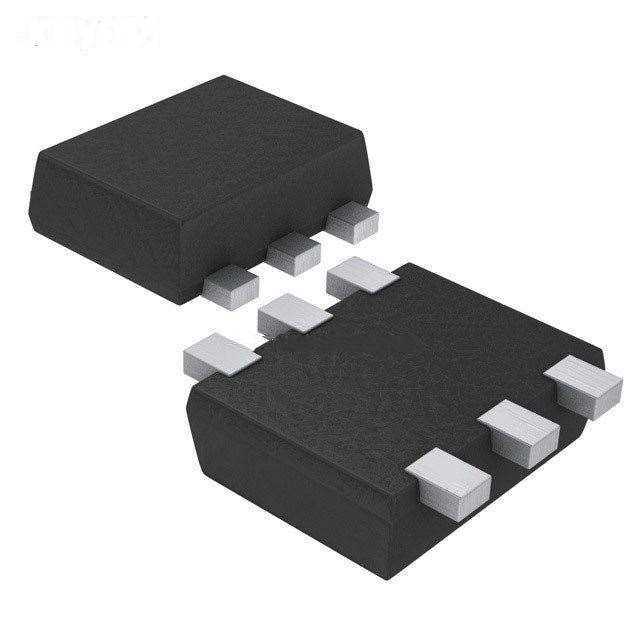

Package / Case | 6-SMD, Flat Leads | |
Supplier Device Package | SC-88FL/ MCPH6 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MCH6331-TL-W | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MCH6331-TL-W is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of MCH6331-TL-W is new and unused, you can buy MCH6331-TL-W ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCH6331-TL-W.
