| Manufacturer Part Number: | MCP4331-503E/ST |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Data Acquisition - Digital Potentiometers |
| Available Quantity: | 9054 Pieces |
| Unit Price: | Quote by Email |
| Description: | Digital Potentiometer 50k Ohm 4 Circuit 129 Taps SPI Interface 20-TSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP4331-503E/ST Datasheet |
| Internal Part Number | 898-MCP4331-503E/ST | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Lead Frame Update 16/Apr/2015 | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | 129 Taps Quad Channel | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Digital Potentiometers | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Taper | Linear | |
| Configuration | Potentiometer | |
| Number of Circuits | 4 | |
| Number of Taps | 129 | |
| Resistance (Ohms) | 50k | |
| Interface | SPI | |
| Memory Type | Volatile | |
| Voltage - Supply | 1.8 V ~ 5.5 V | |
| Features | - | |
| Tolerance | - | |
| Temperature Coefficient (Typ) | 150 ppm/°C | |
| Resistance - Wiper (Ohms) (Typ) | 75 | |
| Operating Temperature | -40°C ~ 125°C | |

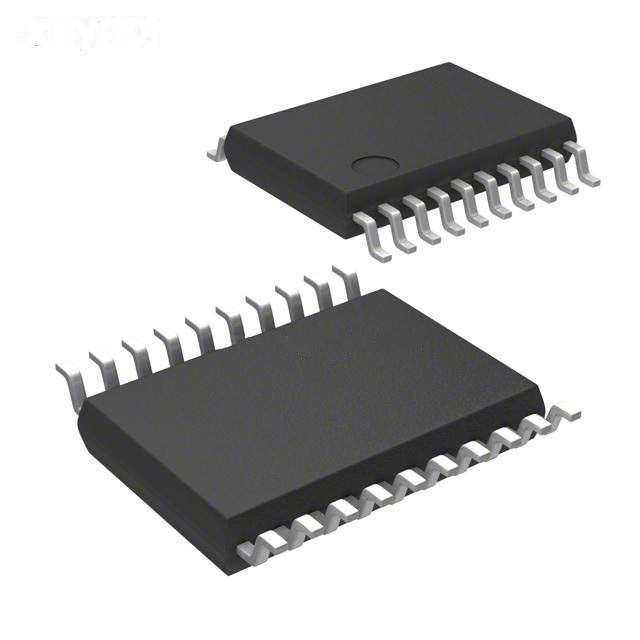

| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | |
| Supplier Device Package | 20-TSSOP | |
| Standard Package | 74 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP4331-503E/ST | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP4331-503E/ST is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP4331-503E/ST is new and unused, you can buy MCP4331-503E/ST Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP4331-503E/ST.
