| Manufacturer Part Number: | MD16180S-DKM2MM |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9035 Pieces |
| Unit Price: | Quote by Email |

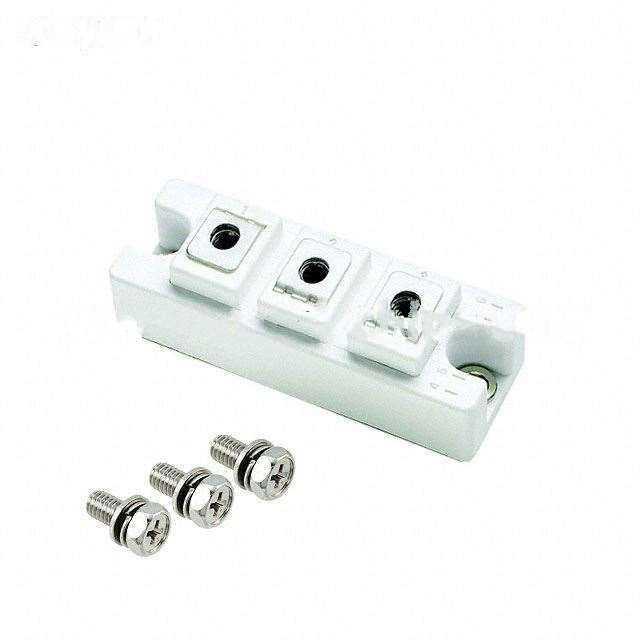

| Description: | Diode Array 1 Pair Common Cathode Standard 1600V (1.6kV) 180A Chassis Mount S-3 Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MD16180S-DKM2MM Datasheet |
| Internal Part Number | 898-MD16180S-DKM2MM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Littelfuse - IGBT and Rectifier Diode Power Modules MG and MD Series | |
| Online Catalog | Standard Diode Array | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Littelfuse Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Configuration | 1 Pair Common Cathode | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 1600V (1.6kV) | |
| Current - Average Rectified (Io) (per Diode) | 180A | |
| Voltage - Forward (Vf) (Max) @ If | 1.5V @ 600A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 500µA @ 1600V | |
| Mounting Type | Chassis Mount | |
| Package / Case | S-3 Module | |
| Supplier Device Package | S3 | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MD16180S-DKM2MM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MD16180S-DKM2MM is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of MD16180S-DKM2MM is new and unused, you can buy MD16180S-DKM2MM Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MD16180S-DKM2MM.
