| Manufacturer Part Number: | MIC2039AYMT-TR |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC SW DISTRIBUTION 6TDFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MIC2039AYMT-TR Datasheet |
| Internal Part Number | 898-MIC2039AYMT-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | MIC2039 Single Input, Stack Configuration for High Current Applications | |
| PCN Part Number | Micrel to Microchip PN Changes 7/Oct/2015 | |
| Online Catalog | General Purpose | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Type | General Purpose | |
| Number of Outputs | 1 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | High Side | |
| Output Type | P-Channel | |
| Interface | On/Off | |
| Voltage - Load | 2.5 V ~ 5.5 V | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | 2.5A | |
| Rds On (Typ) | 75 mOhm | |
| Input Type | Non-Inverting | |
| Features | Slew Rate Controlled, Status Flag | |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |

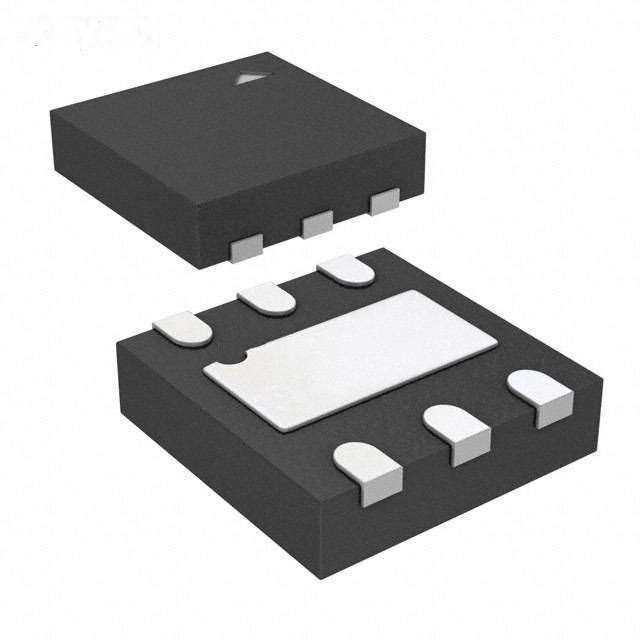

| Package / Case | 6-UDFN Exposed Pad | |
| Supplier Device Package | 6-TDFN (2x2) | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MIC2039AYMT-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MIC2039AYMT-TR is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MIC2039AYMT-TR is new and unused, you can buy MIC2039AYMT-TR Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MIC2039AYMT-TR.
