| Manufacturer Part Number: | MPC8314CVRADDA |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Embedded - Microprocessors |
| Available Quantity: | 9154 Pieces |
| Unit Price: | Quote by Email |

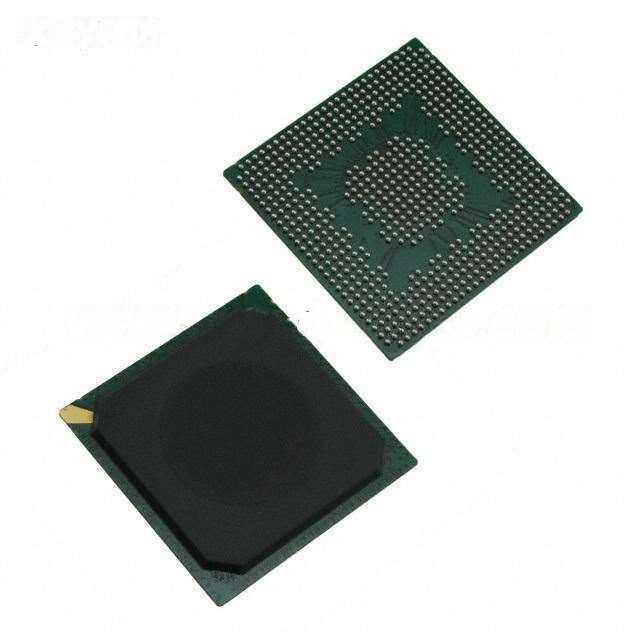

| Description: | PowerPC e300c3 Microprocessor IC MPC83xx 1 Core, 32-Bit 266MHz 620-PBGA (29x29) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MPC8314CVRADDA Datasheet |
| Internal Part Number | 898-MPC8314CVRADDA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MPC8314/15 Product Overview | |
| PCN Design/Specification | Errata Update 25/Sep/2013 Errata Update 25/Sep/2013 SATA Interface Errata Update 03/Jun/2014 Errata Update 18/Jun/2014 MPC8314/8315 Errata Update 01/Jul/2014 USB Errata Update 17/Jul/2014 | |
| PCN Assembly/Origin | MPC8314/MPC8315 10/Jul/2013 | |
| Online Catalog | MPC83xx | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microprocessors | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | MPC83xx | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | PowerPC e300c3 | |
| Number of Cores/Bus Width | 1 Core, 32-Bit | |
| Speed | 266MHz | |
| Co-Processors/DSP | - | |
| RAM Controllers | DDR, DDR2 | |
| Graphics Acceleration | No | |
| Display & Interface Controllers | - | |
| Ethernet | 10/100/1000 Mbps (2) | |
| SATA | - | |
| USB | USB 2.0 + PHY (1) | |
| Voltage - I/O | 1.8V, 2.5V, 3.3V | |
| Operating Temperature | -40°C ~ 105°C (TA) | |
| Security Features | - | |
| Package / Case | 620-BBGA Exposed Pad | |
| Supplier Device Package | 620-PBGA (29x29) | |
| Additional Interfaces | DUART, HSSI, I²C, PCI, SPI, TDM | |
| Standard Package | 36 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MPC8314CVRADDA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MPC8314CVRADDA is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MPC8314CVRADDA is new and unused, you can buy MPC8314CVRADDA NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPC8314CVRADDA.
