| Manufacturer Part Number: | NC7WZ38L8X |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Logic - Gates and Inverters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | NAND Gate IC 2 Channel Open Drain 8-MicroPak™ |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NC7WZ38L8X Datasheet |
| Internal Part Number | 898-NC7WZ38L8X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Die Material, Mold Compound 03/Oct/2008 Marking Content 19/Nov/2013 | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Gates and Inverters | |
| Manufacturer | Fairchild Semiconductor | |
| Series | 7WZ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Logic Type | NAND Gate | |
| Number of Circuits | 2 | |
| Number of Inputs | 2 | |
| Features | Open Drain | |
| Voltage - Supply | 1.65 V ~ 5.5 V | |
| Current - Quiescent (Max) | 1µA | |
| Current - Output High, Low | -, 32mA | |
| Logic Level - Low | - | |
| Logic Level - High | - | |
| Max Propagation Delay @ V, Max CL | 3.4ns @ 5V, 50pF | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

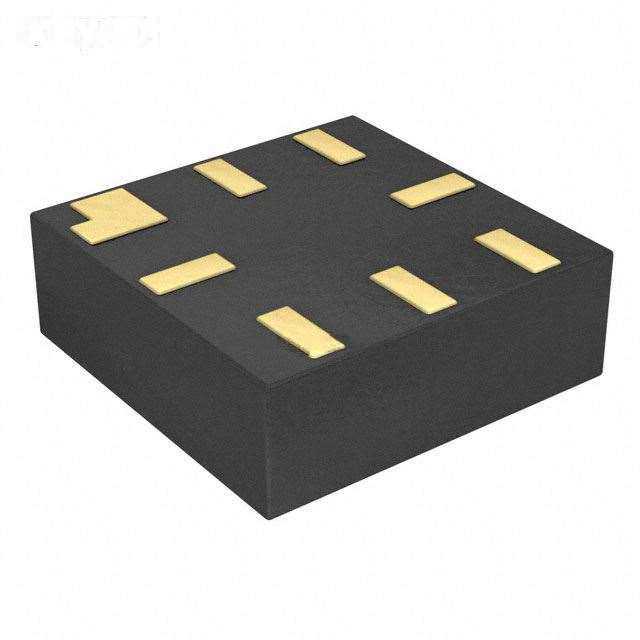

| Supplier Device Package | 8-MicroPak™ | |
| Package / Case | 8-UFQFN | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NC7WZ38L8X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NC7WZ38L8X is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of NC7WZ38L8X is new and unused, you can buy NC7WZ38L8X Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NC7WZ38L8X.
