| Manufacturer Part Number: | NCP3232NMNTXG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 15A 40-VFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NCP3232NMNTXG Datasheet |
| Internal Part Number | 898-NCP3232NMNTXG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High Current Synchronous Buck Converters | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Discontinued | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 21V | |
| Voltage - Output (Min/Fixed) | 0.6V | |
| Voltage - Output (Max) | 19.32V | |
| Current - Output | 15A | |
| Frequency - Switching | 500kHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

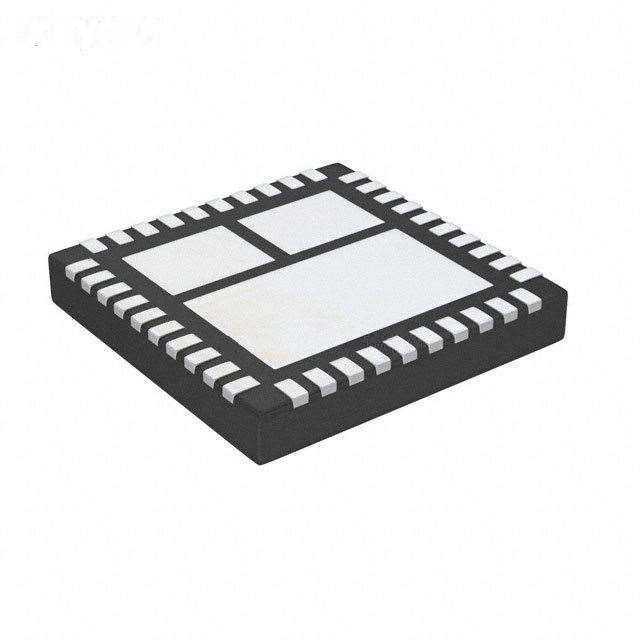

| Package / Case | 40-VFQFN Exposed Pad | |
| Supplier Device Package | 40-QFN (6x6) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NCP3232NMNTXG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NCP3232NMNTXG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NCP3232NMNTXG is new and unused, you can buy NCP3232NMNTXG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NCP3232NMNTXG.
