| Manufacturer Part Number: | NCP4685EMU30TCG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Fixed 1 Output 3V 150mA 4-UDFN (1.0x1.0) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NCP4685EMU30TCG Datasheet |
| Internal Part Number | 898-NCP4685EMU30TCG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Regulator Topology | Positive Fixed | |
| Voltage - Output | 3V | |
| Current - Output | 150mA | |
| Voltage - Dropout (Typical) | 0.24V @ 150mA | |
| Number of Regulators | 1 | |
| Voltage - Input | Up to 5.25V | |
| Current - Limit (Min) | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

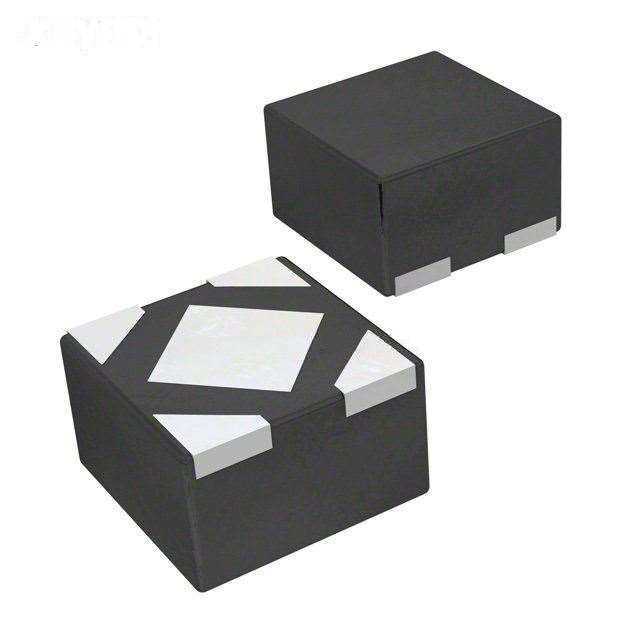

| Package / Case | 4-UDFN Exposed Pad | |
| Supplier Device Package | 4-UDFN (1.0x1.0) | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NCP4685EMU30TCG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NCP4685EMU30TCG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NCP4685EMU30TCG is new and unused, you can buy NCP4685EMU30TCG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NCP4685EMU30TCG.
