| Manufacturer Part Number: | NCP5222MNR2G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Power Management - Specialized |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Multiphase Controller PMIC 28-QFN (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NCP5222MNR2G Datasheet |
| Internal Part Number | 898-NCP5222MNR2G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | 3Q2105 EOL 6/Nov/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Management - Specialized | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Applications | Multiphase Controller | |
| Current - Supply | 2.5mA | |
| Voltage - Supply | 4.5 V ~ 27 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

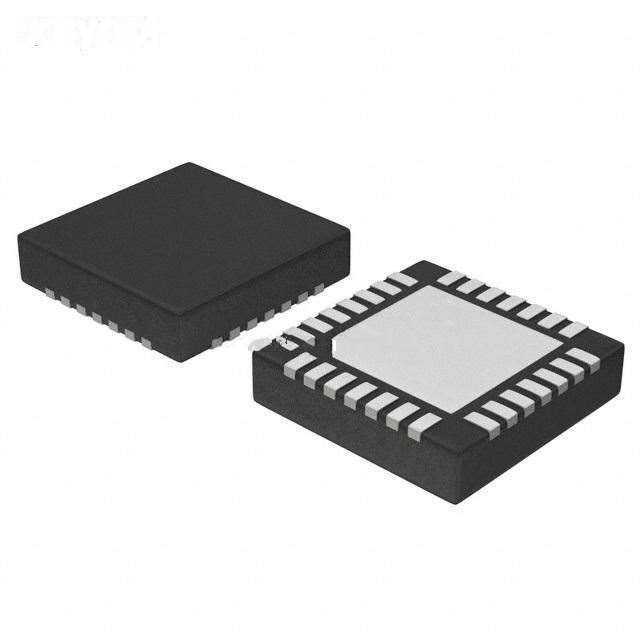

| Package / Case | 28-VFQFN Exposed Pad | |
| Supplier Device Package | 28-QFN (4x4) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NCP5222MNR2G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NCP5222MNR2G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NCP5222MNR2G is new and unused, you can buy NCP5222MNR2G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NCP5222MNR2G.
