| Manufacturer Part Number: | NESG2101M05-A |
|---|---|
| Manufacturer: | CEL |
| Product Category: | Transistors - Bipolar (BJT) - RF |
| Available Quantity: | 9199 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Transistor NPN 5V 100mA 17GHz 500mW Surface Mount M05 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NESG2101M05-A Datasheet |
| Internal Part Number | 898-NESG2101M05-A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | NPN RF Transistors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - RF | |
| Manufacturer | CEL | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Not Available | |
| Transistor Type | NPN | |
| Voltage - Collector Emitter Breakdown (Max) | 5V | |
| Frequency - Transition | 17GHz | |
| Noise Figure (dB Typ @ f) | 0.6dB ~ 1.2dB @ 1GHz ~ 2GHz | |
| Gain | 11dB ~ 19dB | |
| Power - Max | 500mW | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 130 @ 15mA, 2V | |
| Current - Collector (Ic) (Max) | 100mA | |
| Mounting Type | Surface Mount | |

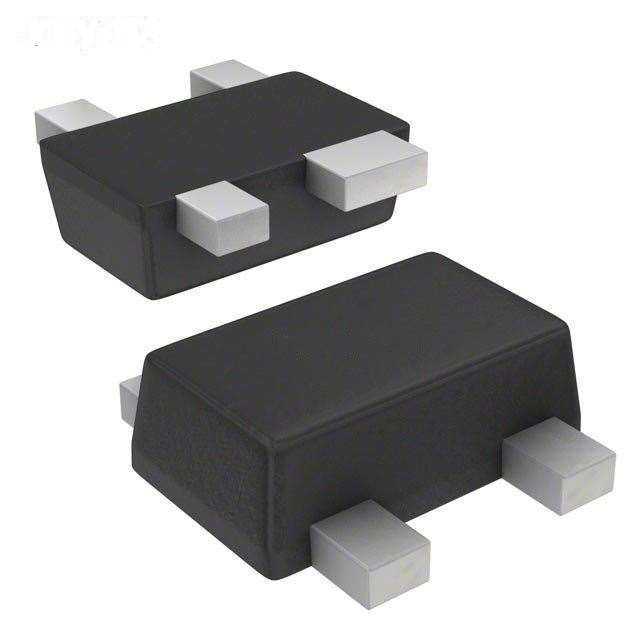

| Package / Case | SOT-343F | |
| Supplier Device Package | M05 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NESG2101M05-A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NESG2101M05-A is in stock for immediate shipping now. We are the distributor of CEL all series components. The condition of NESG2101M05-A is new and unused, you can buy NESG2101M05-A CEL with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NESG2101M05-A.
