| Manufacturer Part Number: | NIS5132MN3TXG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Current Regulation/Management |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Electronic Fuse Regulator High-Side 3.6A 10-DFN (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NIS5132MN3TXG Datasheet |
| Internal Part Number | 898-NIS5132MN3TXG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Monolithic IC Electronic Fuses Evaluation Board - NIS5132-35GEVB Test Procedure | |
| PCN Assembly/Origin | Assembly Site Addition 15/May/2014 Assembly Site Reversal 09/Sep/2014 | |
| PCN Packaging | Top Marking Update 01/Aug/2014 Covering Tape/Material Chg 20/May/2016 | |
| Online Catalog | Electronic Fuse | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Current Regulation/Management | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Electronic Fuse | |
| Sensing Method | High-Side | |
| Accuracy | - | |
| Voltage - Input | 9 V ~ 18 V | |
| Current - Output | 3.6A | |
| Operating Temperature | -40°C ~ 150°C | |
| Mounting Type | Surface Mount | |

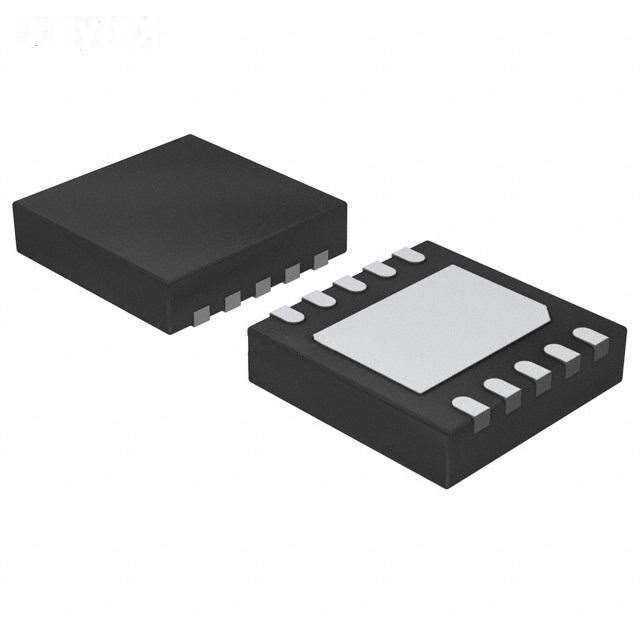

| Package / Case | 10-VFDFN Exposed Pad | |
| Supplier Device Package | 10-DFN (3x3) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NIS5132MN3TXG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NIS5132MN3TXG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NIS5132MN3TXG is new and unused, you can buy NIS5132MN3TXG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NIS5132MN3TXG.
