| Manufacturer Part Number: | NTD50N03R-001 |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 25V 7.8A IPAK |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NTD50N03R-001 Datasheet |
| Internal Part Number | 898-NTD50N03R-001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 11/Jul/2008 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 25V | |
| Current - Continuous Drain (Id) @ 25°C | 7.8A (Ta), 45A (Tc) | |
| Rds On (Max) @ Id, Vgs | 12 mOhm @ 30A, 11.5V | |
| Vgs(th) (Max) @ Id | 2V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 15nC @ 11.5V | |
| Input Capacitance (Ciss) @ Vds | 750pF @ 12V | |
| Power - Max | 1.5W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |

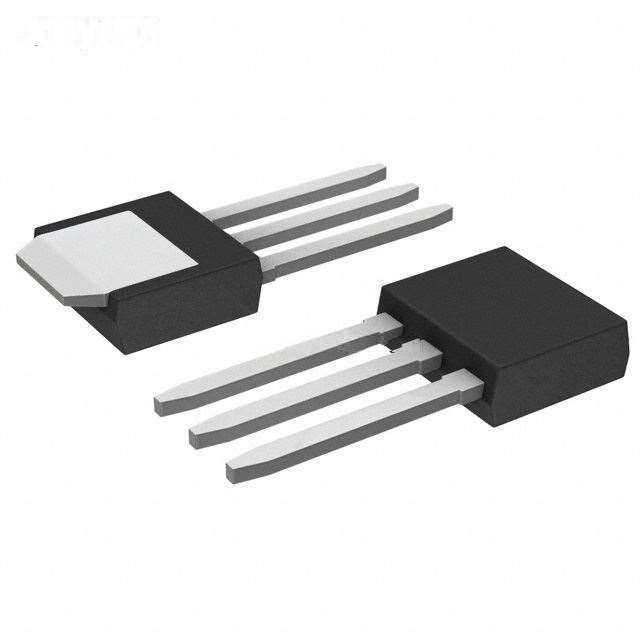

| Package / Case | TO-251-3 Stub Leads, IPak | |
| Supplier Device Package | I-Pak | |
| Standard Package | 75 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NTD50N03R-001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NTD50N03R-001 is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NTD50N03R-001 is new and unused, you can buy NTD50N03R-001 ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NTD50N03R-001.
