| Manufacturer Part Number: | PCA9685BS,118 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 16 Output Linear PWM Dimming 25mA 28-HVQFN (6x6) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PCA9685BS,118 Datasheet |
| Internal Part Number | 898-PCA9685BS,118 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | I²C Bus Fundamentals | |
| Design Resources | Lighting Product Selector | |
| PCN Packaging | Date Code Extended 18/Jul/2013 | |
| Online Catalog | Linear | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | NXP Semiconductors | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Linear | |
| Topology | - | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 16 | |
| Voltage - Supply (Min) | 2.3V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 5.5V | |
| Current - Output / Channel | 25mA | |
| Frequency | - | |
| Dimming | PWM | |
| Applications | Backlight | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 28-VQFN Exposed Pad | |

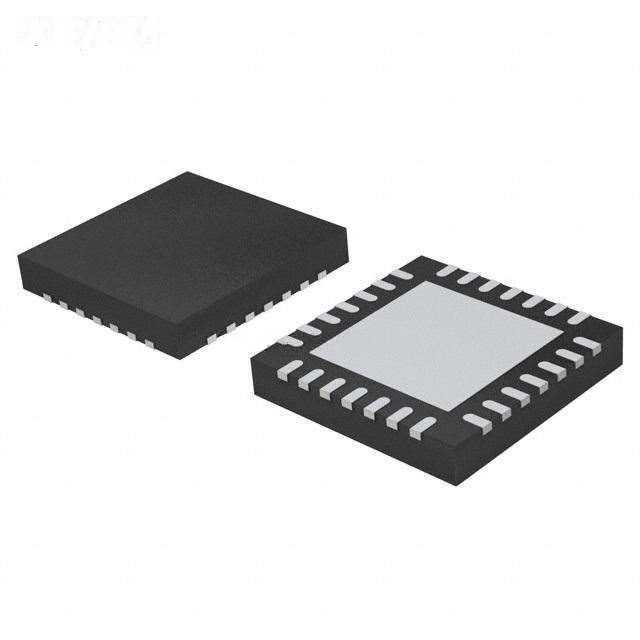

| Supplier Device Package | 28-HVQFN (6x6) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PCA9685BS,118 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PCA9685BS,118 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of PCA9685BS,118 is new and unused, you can buy PCA9685BS,118 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PCA9685BS,118.
