Manufacturer Part Number: | PD3S130L-7 |
---|---|
Manufacturer: | Diodes Incorporated |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 10251 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE SCHOTTKY 30V 1A POWERDI323 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PD3S130L-7 Datasheet |
Internal Part Number | 898-PD3S130L-7 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Cert of Compliance | |
Online Catalog | Schottky Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Diodes Incorporated | |
Series | - | |
Packaging | Digi-Reel® | |
Part Status | Active | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 30V | |
Current - Average Rectified (Io) | 1A | |
Voltage - Forward (Vf) (Max) @ If | 420mV @ 1A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 1.5mA @ 30V | |
Capacitance @ Vr, F | 40pF @ 10V, 1MHz | |
Mounting Type | Surface Mount | |

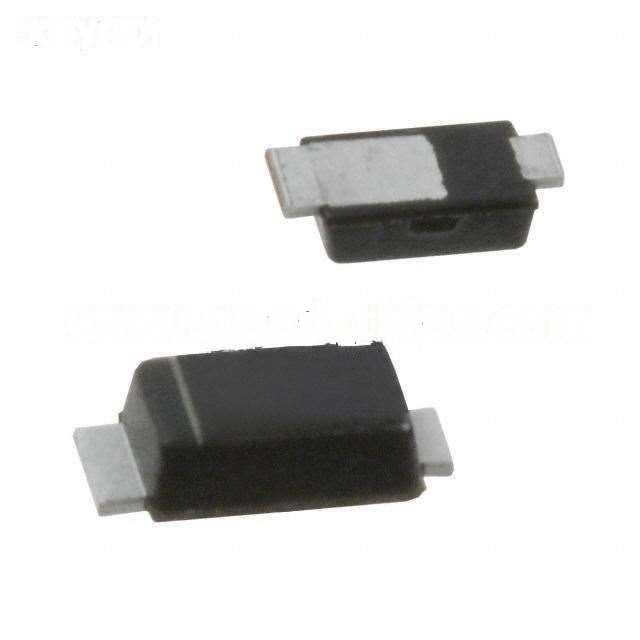

Package / Case | PowerDI™ 323 | |
Supplier Device Package | PowerDI™ 323 | |
Operating Temperature - Junction | -65°C ~ 125°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PD3S130L-7 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PD3S130L-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of PD3S130L-7 is new and unused, you can buy PD3S130L-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PD3S130L-7.
