| Manufacturer Part Number: | PIP213-12M,518 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC REG BUCK SYNC ADJ 25A 56HVQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PIP213-12M,518 Datasheet |
| Internal Part Number | 898-PIP213-12M,518 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | NXP Semiconductors | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Output Configuration | Half Bridge | |
| Applications | Synchronous Buck Converters | |
| Interface | PWM | |
| Load Type | Inductive | |
| Technology | DrMOS | |
| Rds On (Typ) | 3.8 mOhm LS, 6.5 mOhm HS | |
| Current - Output / Channel | 25A | |
| Current - Peak Output | 40A | |
| Voltage - Supply | 3.3 V ~ 16 V | |
| Voltage - Load | 24V (Max) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Features | Bootstrap Circuit, 5V Regulated Output | |
| Fault Protection | Over Temperature, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 56-VFQFN Exposed Pad | |

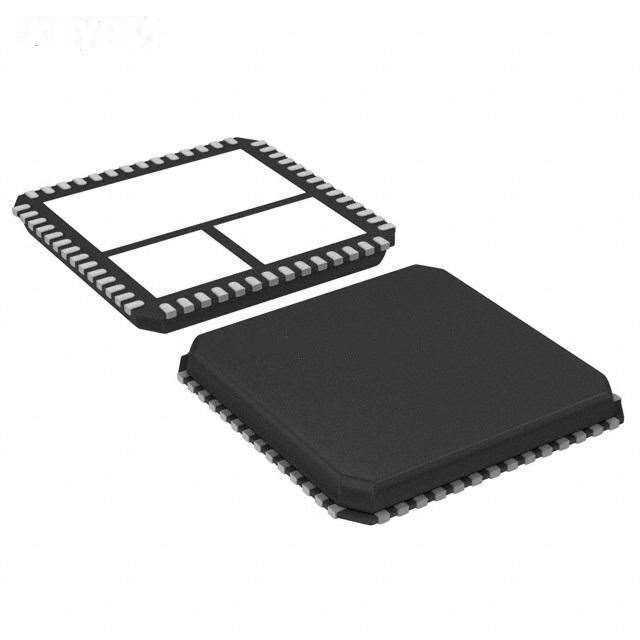

| Supplier Device Package | 56-HVQFN (8x8) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PIP213-12M,518 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PIP213-12M,518 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of PIP213-12M,518 is new and unused, you can buy PIP213-12M,518 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PIP213-12M,518.
