| Manufacturer Part Number: | RT5796CHGJ5 |
|---|---|
| Manufacturer: | Richtek USA Inc. |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1.5A SOT-23-5 Thin, TSOT-23-5 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RT5796CHGJ5 Datasheet |
| Internal Part Number | 898-RT5796CHGJ5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Richtek USA Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2.5V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | 0.6V | |
| Voltage - Output (Max) | 3.4V | |
| Current - Output | 1.5A | |
| Frequency - Switching | 1MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

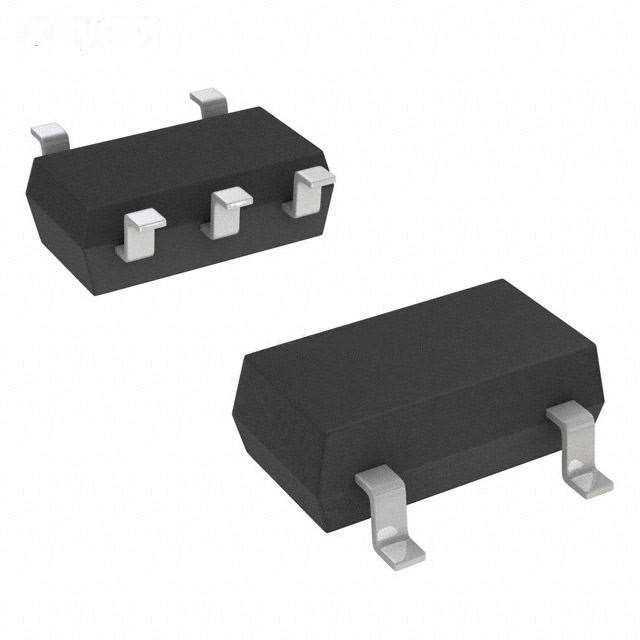

| Package / Case | SOT-23-5 Thin, TSOT-23-5 | |
| Supplier Device Package | TSOT-23-5 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RT5796CHGJ5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RT5796CHGJ5 is in stock for immediate shipping now. We are the distributor of Richtek USA Inc. all series components. The condition of RT5796CHGJ5 is new and unused, you can buy RT5796CHGJ5 Richtek USA Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RT5796CHGJ5.
