| Manufacturer Part Number: | S2055M |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Thyristors - SCRs |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SCR 200V 55A Standard Recovery Through Hole TO-218 Non-Isolated Tab |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S2055M Datasheet |
| Internal Part Number | 898-S2055M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Thyristors - SCRs | |
| Manufacturer | Littelfuse Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Voltage - Off State | 200V | |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V | |
| Current - Gate Trigger (Igt) (Max) | 40mA | |
| Voltage - On State (Vtm) (Max) | 1.8V | |
| Current - On State (It (AV)) (Max) | 35A | |
| Current - On State (It (RMS)) (Max) | 55A | |
| Current - Hold (Ih) (Max) | 60mA | |
| Current - Off State (Max) | 10µA | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 650A | |
| SCR Type | Standard Recovery | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Through Hole | |

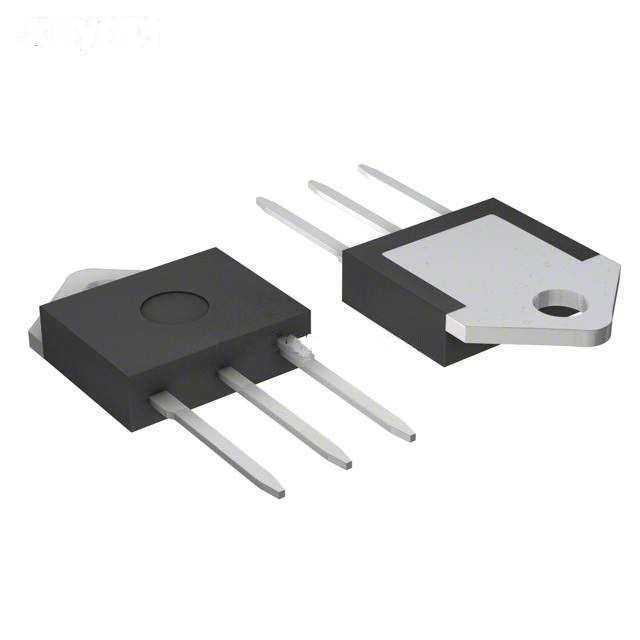

| Package / Case | TO-218-3, TO-218AC | |
| Supplier Device Package | TO-218 Non-Isolated Tab | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S2055M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S2055M is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of S2055M is new and unused, you can buy S2055M Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S2055M.
