Manufacturer Part Number: | S4X8BSRP1 |
---|---|
Manufacturer: | Littelfuse Inc. |
Product Category: | Thyristors - SCRs |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | SCR 400V 800mA Sensitive Gate Surface Mount SOT-89 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | S4X8BSRP1 Datasheet |
Internal Part Number | 898-S4X8BSRP1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Thyristors - SCRs | |
Manufacturer | Littelfuse Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Voltage - Off State | 400V | |
Voltage - Gate Trigger (Vgt) (Max) | 800mV | |
Current - Gate Trigger (Igt) (Max) | 200µA | |
Voltage - On State (Vtm) (Max) | 1.7V | |
Current - On State (It (AV)) (Max) | 510mA | |
Current - On State (It (RMS)) (Max) | 800mA | |
Current - Hold (Ih) (Max) | 5mA | |
Current - Off State (Max) | 3µA | |
Current - Non Rep. Surge 50, 60Hz (Itsm) | 8A, 10A | |
SCR Type | Sensitive Gate | |
Operating Temperature | -40°C ~ 125°C | |
Mounting Type | Surface Mount | |
Package / Case | TO-243AA | |

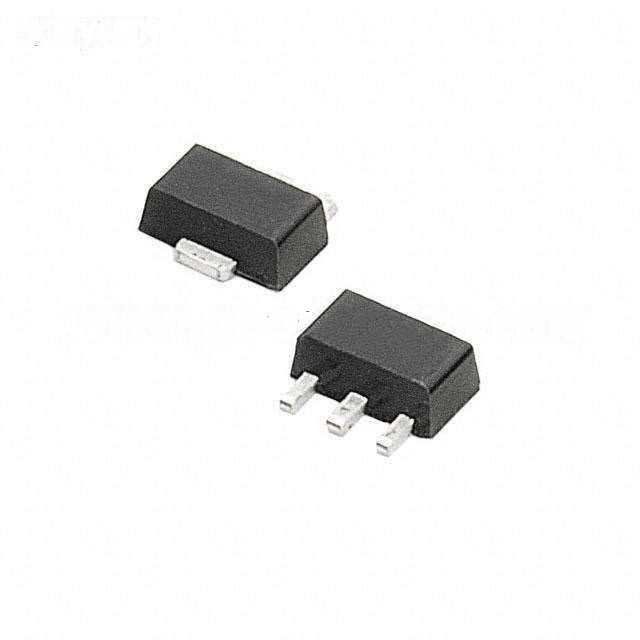

Supplier Device Package | SOT-89 | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | S4X8BSRP1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
S4X8BSRP1 is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of S4X8BSRP1 is new and unused, you can buy S4X8BSRP1 Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S4X8BSRP1.
