| Manufacturer Part Number: | S9S12DG25F0VPVER |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | HCS12 HCS12 Microcontroller IC 16-Bit 25MHz 256KB (256K x 8) FLASH 112-LQFP (20x20) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S9S12DG25F0VPVER Datasheet |
| Internal Part Number | 898-S9S12DG25F0VPVER | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Design/Specification | Copper Wirebond Material 09/Jun/2014 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | HCS12 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Core Processor | HCS12 | |
| Core Size | 16-Bit | |
| Speed | 25MHz | |
| Connectivity | CAN, I²C, SCI, SPI | |
| Peripherals | PWM, WDT | |
| Number of I/O | 91 | |
| Program Memory Size | 256KB (256K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | 4K x 8 | |
| RAM Size | 12K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.35 V ~ 5.25 V | |
| Data Converters | A/D 16x10b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 105°C (TA) | |

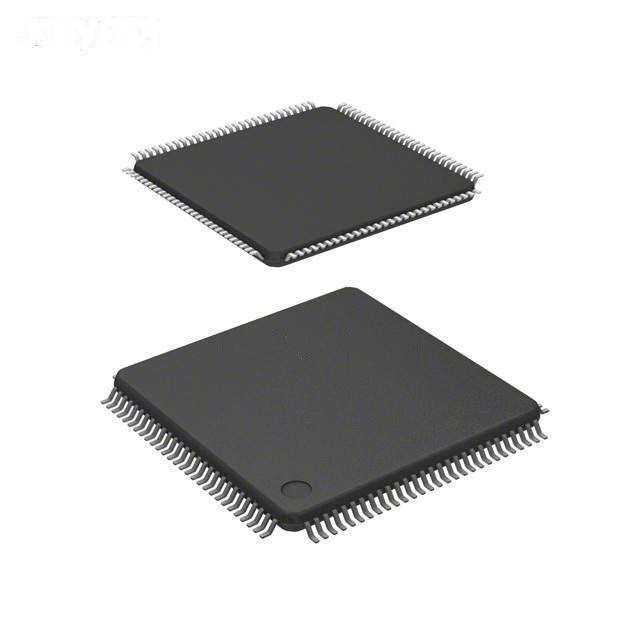

| Package / Case | 112-LQFP | |
| Supplier Device Package | 112-LQFP (20x20) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S9S12DG25F0VPVER | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S9S12DG25F0VPVER is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of S9S12DG25F0VPVER is new and unused, you can buy S9S12DG25F0VPVER NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S9S12DG25F0VPVER.
