, Flat Lead.jpg)
| Manufacturer Part Number: | SBS822-TL-W |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 2 Independent Schottky 20V 1A Surface Mount 6-SMD (5 Leads), Flat Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SBS822-TL-W Datasheet |
| Internal Part Number | 898-SBS822-TL-W | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Raw Material Change 22/Jul/2015 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Configuration | 2 Independent | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 20V | |
| Current - Average Rectified (Io) (per Diode) | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 460mV @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 10ns | |
| Current - Reverse Leakage @ Vr | 110µA @ 10V | |
| Mounting Type | Surface Mount | |

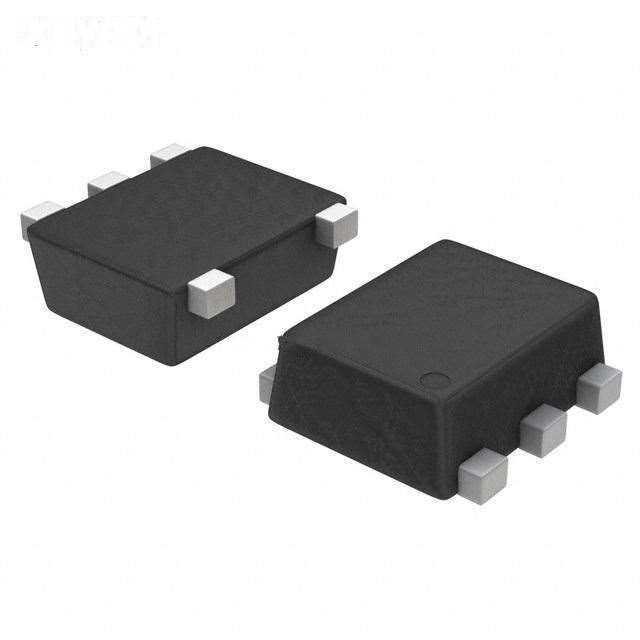

| Package / Case | 6-SMD (5 Leads), Flat Lead | |
| Supplier Device Package | 5-MCPH | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SBS822-TL-W | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SBS822-TL-W is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of SBS822-TL-W is new and unused, you can buy SBS822-TL-W ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SBS822-TL-W.
