| Manufacturer Part Number: | SGL160N60UFDTU |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9234 Pieces |
| Unit Price: | Quote by Email |

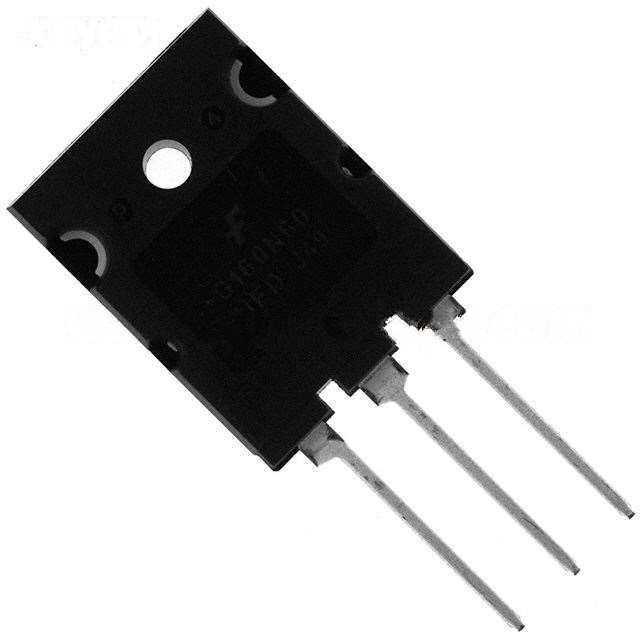

| Description: | IGBT 600V 160A 250W Through Hole TO-264 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SGL160N60UFDTU Datasheet |
| Internal Part Number | 898-SGL160N60UFDTU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Switches for Power Processing | |
| PCN Design/Specification | Device Marking Update 12/May/2015 | |
| PCN Assembly/Origin | Assembly Site Transfer 06/Apr/2015 | |
| PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Not For New Designs | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 160A | |
| Current - Collector Pulsed (Icm) | 300A | |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 80A | |
| Power - Max | 250W | |
| Switching Energy | 2.5mJ (on), 1.76mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 345nC | |
| Td (on/off) @ 25°C | 40ns/90ns | |
| Test Condition | 300V, 80A, 3.9 Ohm, 15V | |
| Reverse Recovery Time (trr) | 95ns | |
| Package / Case | TO-264-3, TO-264AA | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-264 | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SGL160N60UFDTU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SGL160N60UFDTU is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of SGL160N60UFDTU is new and unused, you can buy SGL160N60UFDTU Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SGL160N60UFDTU.
