| Manufacturer Part Number: | SIE806DF-T1-E3 |
|---|---|
| Manufacturer: | Vishay Siliconix |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 30V 60A 10-POLARPAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SIE806DF-T1-E3 Datasheet |
| Internal Part Number | 898-SIE806DF-T1-E3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | MOSFET Technologies for Power Conversion | |
| Featured Product | PolarPAK® Power MOSFETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Vishay Siliconix | |
| Series | TrenchFET® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) | |
| Rds On (Max) @ Id, Vgs | 1.7 mOhm @ 25A, 10V | |
| Vgs(th) (Max) @ Id | 2V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 250nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 13000pF @ 15V | |
| Power - Max | 125W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

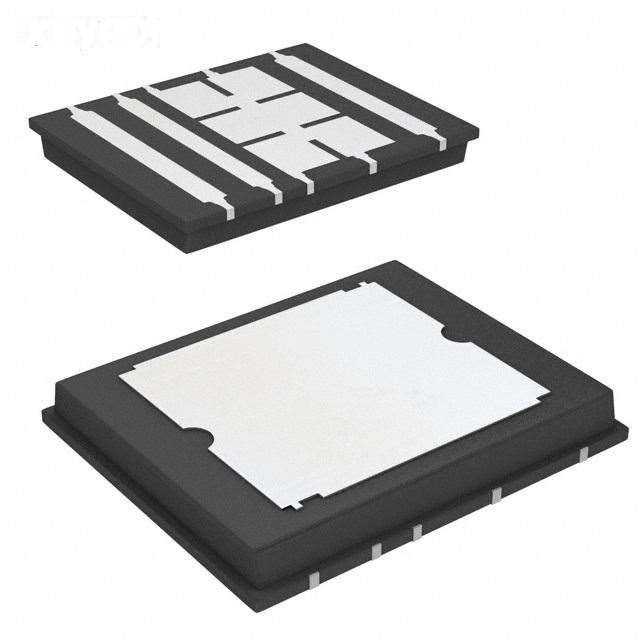

| Package / Case | 10-PolarPAK® (L) | |
| Supplier Device Package | 10-PolarPAK® (L) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SIE806DF-T1-E3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SIE806DF-T1-E3 is in stock for immediate shipping now. We are the distributor of Vishay Siliconix all series components. The condition of SIE806DF-T1-E3 is new and unused, you can buy SIE806DF-T1-E3 Vishay Siliconix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SIE806DF-T1-E3.
