| Manufacturer Part Number: | SIHF12N50C-E3 |
|---|---|
| Manufacturer: | Vishay Siliconix |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 500V 12A TO-220 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SIHF12N50C-E3 Datasheet |
| Internal Part Number | 898-SIHF12N50C-E3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | MOSFET Technologies for Power Conversion | |
| PCN Assembly/Origin | SIL-073-2014-Rev-0 13/Jun/2014 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Vishay Siliconix | |
| Series | - | |
| Packaging | * | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 500V | |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) | |
| Rds On (Max) @ Id, Vgs | 555 mOhm @ 4A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 48nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 1375pF @ 25V | |
| Power - Max | 36W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |

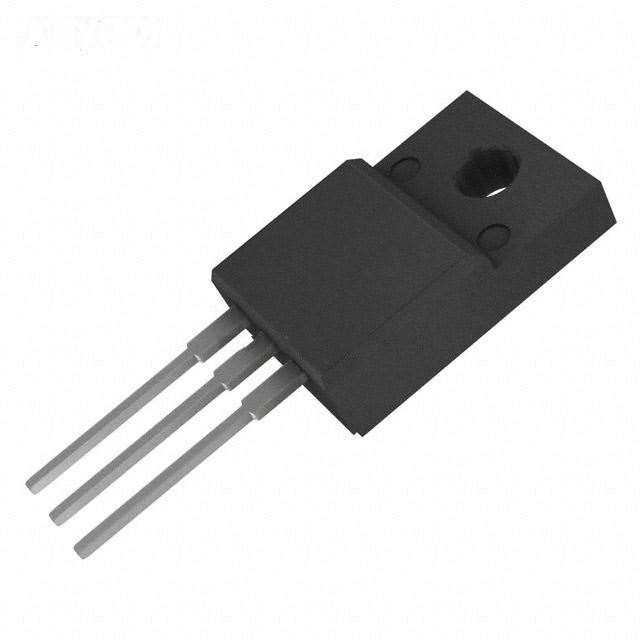

| Package / Case | TO-220-3 Full Pack | |
| Supplier Device Package | TO-220 Full Pack | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SIHF12N50C-E3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SIHF12N50C-E3 is in stock for immediate shipping now. We are the distributor of Vishay Siliconix all series components. The condition of SIHF12N50C-E3 is new and unused, you can buy SIHF12N50C-E3 Vishay Siliconix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SIHF12N50C-E3.
