| Manufacturer Part Number: | SQ7415AEN-T1_GE3 |
|---|---|
| Manufacturer: | Vishay Siliconix |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 60V 16A 1212-8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SQ7415AEN-T1_GE3 Datasheet |
| Internal Part Number | 898-SQ7415AEN-T1_GE3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | MOSFET Technologies for Power Conversion | |
| PCN Assembly/Origin | SIL-040-2014-Rev-3 22/Sep/2014 | |
| PCN Part Number | New Ordering Code 19/Mar/2015 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Vishay Siliconix | |
| Series | TrenchFET® | |
| Packaging | Cut Tape (CT) | |
| Part Status | Discontinued | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) | |
| Rds On (Max) @ Id, Vgs | 65 mOhm @ 5.7A, 10V | |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 38nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 1385pF @ 25V | |
| Power - Max | 53W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |

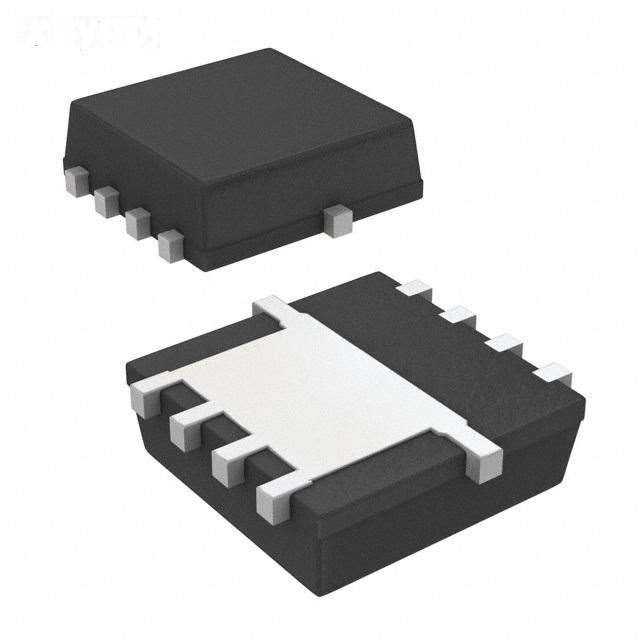

| Package / Case | PowerPAK® 1212-8 | |
| Supplier Device Package | PowerPAK® 1212-8 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SQ7415AEN-T1_GE3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SQ7415AEN-T1_GE3 is in stock for immediate shipping now. We are the distributor of Vishay Siliconix all series components. The condition of SQ7415AEN-T1_GE3 is new and unused, you can buy SQ7415AEN-T1_GE3 Vishay Siliconix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SQ7415AEN-T1_GE3.
