| Manufacturer Part Number: | STA6940M |
|---|---|
| Manufacturer: | Sanken |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 11108 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver Power MOSFET Parallel 18-ZIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STA6940M Datasheet |
| Internal Part Number | 898-STA6940M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Sanken | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | Brushed DC | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (2) | |
| Interface | Parallel | |
| Technology | Power MOSFET | |
| Step Resolution | - | |
| Applications | General Purpose | |
| Current - Output | 4A | |
| Voltage - Supply | 3 V ~ 5.5 V | |
| Voltage - Load | 10 V ~ 40 V | |
| Operating Temperature | -20°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |

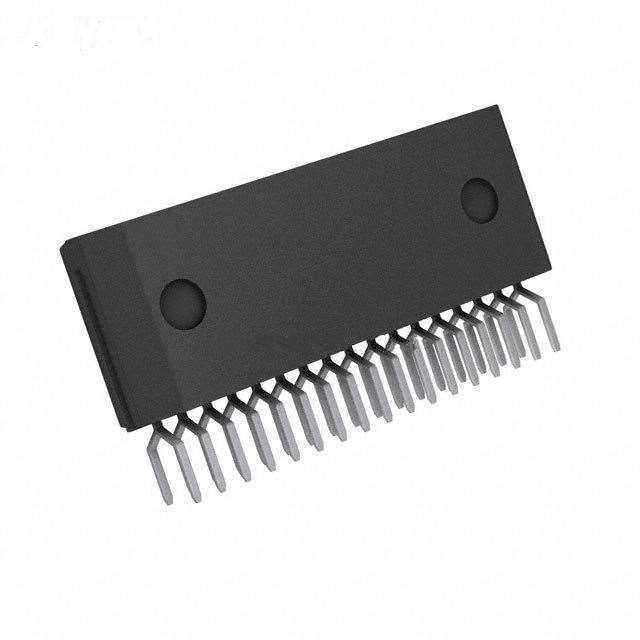

| Package / Case | 18-SIP (Bent and Staggered Leads) | |
| Supplier Device Package | 18-ZIP | |
| Standard Package | 18 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STA6940M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STA6940M is in stock for immediate shipping now. We are the distributor of Sanken all series components. The condition of STA6940M is new and unused, you can buy STA6940M Sanken with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STA6940M.
