| Manufacturer Part Number: | STCF07PNR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) 1A (Flash) 16-QFN (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STCF07PNR Datasheet |
| Internal Part Number | 898-STCF07PNR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | STCF07 View All Specifications STCF07 View All Specifications | |
| Design Resources | Lighting Product Selector | |
| Reference Design Library | STEVAL-TLL009V1: 1A Flash, 0.8A Lamp, 2.7~5.5V in | |
| Online Catalog | DC DC Regulator | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | DC DC Regulator | |
| Topology | Step-Down (Buck), Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 2.7V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 2.5 V ~ 5.3 V | |
| Current - Output / Channel | 1A (Flash) | |
| Frequency | 1.8MHz | |
| Dimming | - | |
| Applications | Camera Flash | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

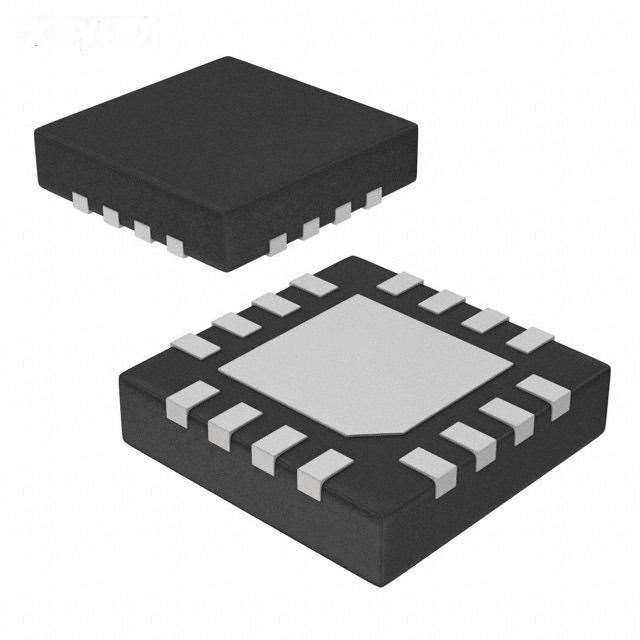

| Package / Case | 16-VFQFN Exposed Pad | |
| Supplier Device Package | 16-QFN (4x4) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STCF07PNR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STCF07PNR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STCF07PNR is new and unused, you can buy STCF07PNR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STCF07PNR.
