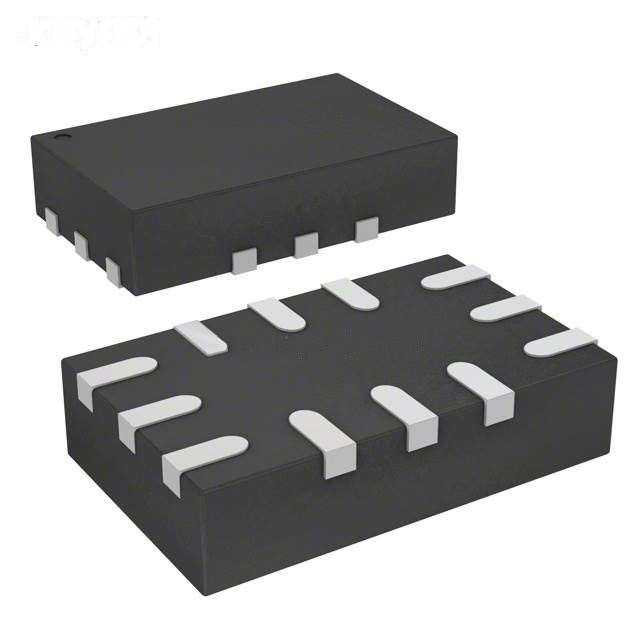

.jpg)
| Manufacturer Part Number: | STG3856QTR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 3:1 1 Ohm 12-QFN (2.2x1.4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STG3856QTR Datasheet |
| Internal Part Number | 898-STG3856QTR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | STG3856 View All Specifications | |
| Online Catalog | Switch | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | SP3T | |
| Multiplexer/Demultiplexer Circuit | 3:1 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 1 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 10 mOhm | |
| Voltage - Supply, Single (V+) | 1.65 V ~ 4.3 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns | |
| -3db Bandwidth | 100MHz | |
| Charge Injection | 55pC | |
| Channel Capacitance (CS(off), CD(off)) | 5pF | |
| Current - Leakage (IS(off)) (Max) | 20nA | |
| Crosstalk | -84dB @ 100kHz | |
| Operating Temperature | -55°C ~ 125°C (TA) | |
| Package / Case | 12-UFQFN | |
| Supplier Device Package | 12-QFN (2.2x1.4) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STG3856QTR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STG3856QTR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STG3856QTR is new and unused, you can buy STG3856QTR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STG3856QTR.
