| Manufacturer Part Number: | STGWT80H65DFB |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9128 Pieces |
| Unit Price: | Quote by Email |

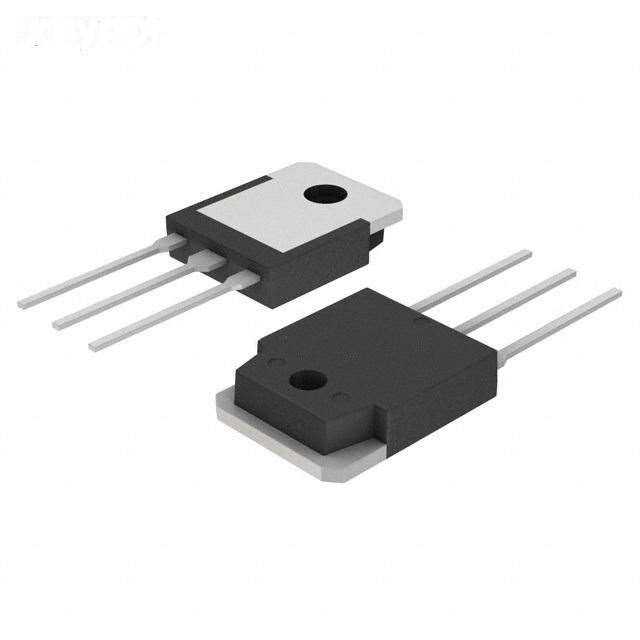

| Description: | IGBT Trench Field Stop 650V 120A 469W Through Hole TO-3P |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STGWT80H65DFB Datasheet |
| Internal Part Number | 898-STGWT80H65DFB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Tail-Less 600 V IGBT V Series 650 V IGBT HB Series | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Voltage - Collector Emitter Breakdown (Max) | 650V | |
| Current - Collector (Ic) (Max) | 120A | |
| Current - Collector Pulsed (Icm) | 240A | |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 80A | |
| Power - Max | 469W | |
| Switching Energy | 2.1mJ (on), 1.5mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 414nC | |
| Td (on/off) @ 25°C | 84ns/280ns | |
| Test Condition | 400V, 80A, 10 Ohm, 15V | |
| Reverse Recovery Time (trr) | 85ns | |
| Package / Case | TO-3P-3, SC-65-3 | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-3P | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STGWT80H65DFB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STGWT80H65DFB is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STGWT80H65DFB is new and unused, you can buy STGWT80H65DFB STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STGWT80H65DFB.
