Manufacturer Part Number: | STTH15AC06FP |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 10889 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE UFAST 600V 15A TO220FPAC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | STTH15AC06FP Datasheet |
Internal Part Number | 898-STTH15AC06FP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Standard Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | STMicroelectronics | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 600V | |
Current - Average Rectified (Io) | 15A | |
Voltage - Forward (Vf) (Max) @ If | 1.9V @ 15A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 55ns | |
Current - Reverse Leakage @ Vr | 2µA @ 600V | |
Capacitance @ Vr, F | - | |
Mounting Type | Through Hole | |

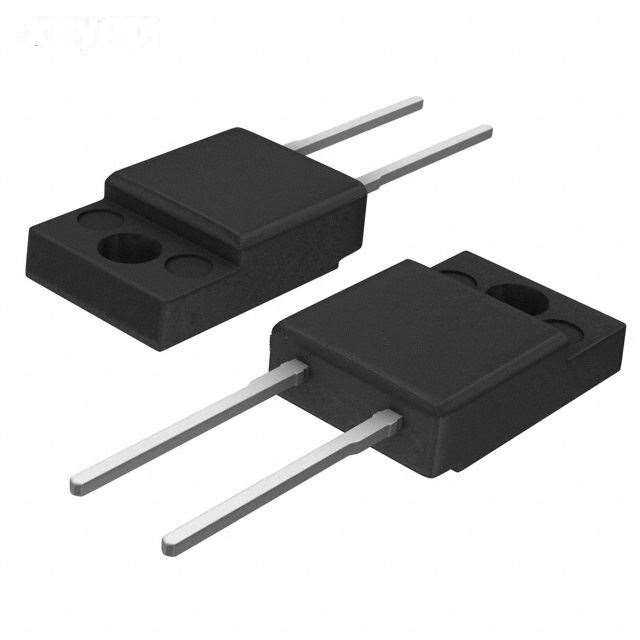

Package / Case | TO-220-2 Full Pack | |
Supplier Device Package | TO-220FPAC | |
Operating Temperature - Junction | 175°C (Max) | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | STTH15AC06FP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
STTH15AC06FP is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STTH15AC06FP is new and unused, you can buy STTH15AC06FP STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STTH15AC06FP.
