| Manufacturer Part Number: | TC1767256F80HLADKXUMA1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TriCore™ TC17xx Microcontroller IC 32-Bit 80MHz 2MB (2M x 8) FLASH 176-LQFP (24x24) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TC1767256F80HLADKXUMA1 Datasheet |
| Internal Part Number | 898-TC1767256F80HLADKXUMA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 05/Aug/2013 | |
| PCN Design/Specification | Leadframe Gate Inlet Update 01/Jul/2014 | |
| PCN Packaging | Packing Belt 17/Dec/2013 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Infineon Technologies | |
| Series | TC17xx | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Core Processor | TriCore™ | |
| Core Size | 32-Bit | |
| Speed | 80MHz | |
| Connectivity | ASC, CAN, MLI, MSC, SSC | |
| Peripherals | DMA, POR, WDT | |
| Number of I/O | 88 | |
| Program Memory Size | 2MB (2M x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 128K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.42 V ~ 1.58 V | |
| Data Converters | A/D 4x10b, 32x12b | |
| Oscillator Type | External | |
| Operating Temperature | -40°C ~ 125°C (TA) | |

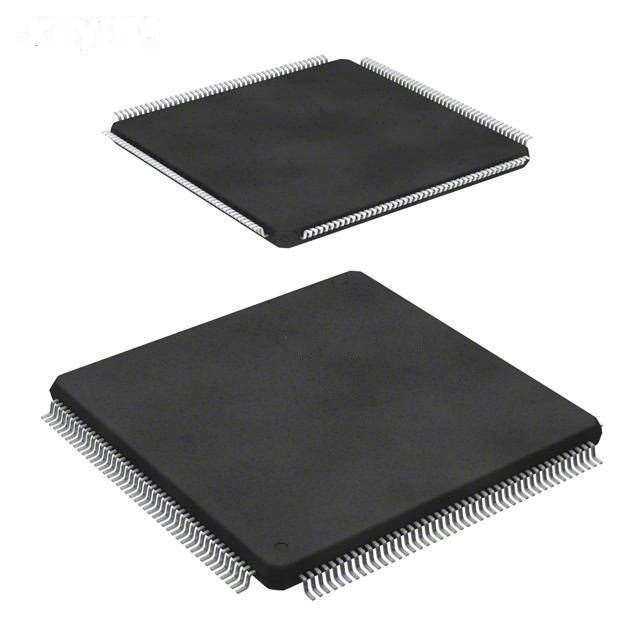

| Package / Case | 176-LQFP | |
| Supplier Device Package | 176-LQFP (24x24) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TC1767256F80HLADKXUMA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TC1767256F80HLADKXUMA1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of TC1767256F80HLADKXUMA1 is new and unused, you can buy TC1767256F80HLADKXUMA1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TC1767256F80HLADKXUMA1.
