| Manufacturer Part Number: | TC7W14FK,LF |
|---|---|
| Manufacturer: | Toshiba Semiconductor and Storage |
| Product Category: | Logic - Gates and Inverters |
| Available Quantity: | 18010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Inverter IC 3 Channel Schmitt Trigger US8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TC7W14FK,LF Datasheet |
| Internal Part Number | 898-TC7W14FK,LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 7W | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Gates and Inverters | |
| Manufacturer | Toshiba Semiconductor and Storage | |
| Series | TC7W | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Logic Type | Inverter | |
| Number of Circuits | 3 | |
| Number of Inputs | 3 | |
| Features | Schmitt Trigger | |
| Voltage - Supply | 2 V ~ 6 V | |
| Current - Quiescent (Max) | 1µA | |
| Current - Output High, Low | 5.2mA, 5.2mA | |
| Logic Level - Low | 0.3 V ~ 1.5 V | |
| Logic Level - High | 1.5 V ~ 4.2 V | |
| Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | US8 | |

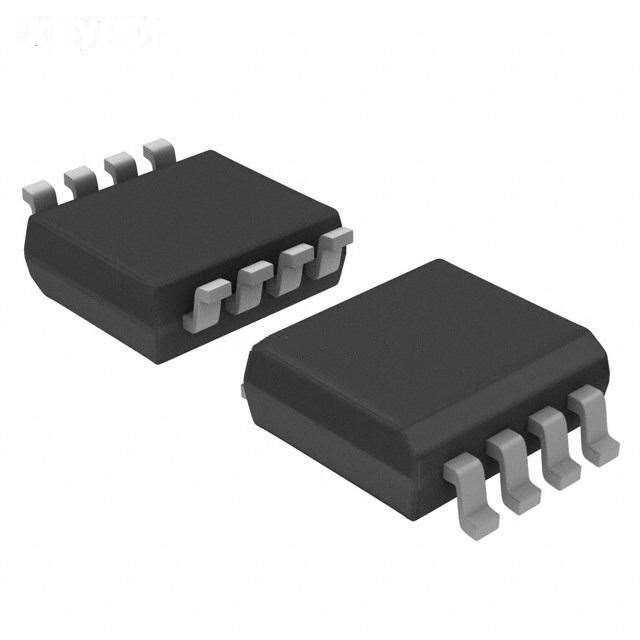

| Package / Case | 8-VFSOP (0.091", 2.30mm Width) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TC7W14FK,LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TC7W14FK,LF is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of TC7W14FK,LF is new and unused, you can buy TC7W14FK,LF Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TC7W14FK,LF.
