| Manufacturer Part Number: | TPS2231MRGPRG4 |
|---|---|
| Manufacturer: | T-I |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC PWR INTERFACE SWITCH 20QFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPS2231MRGPRG4 Datasheet |
| Internal Part Number | 898-TPS2231MRGPRG4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | T I | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Type | ExpressCard™ Switch | |
| Number of Outputs | 3 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | High Side | |
| Output Type | - | |
| Interface | - | |
| Voltage - Load | 1.5V, 3.3V | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | 1.3A | |
| Rds On (Typ) | 45 mOhm | |
| Input Type | - | |
| Features | Power Good, Status Flag | |
| Fault Protection | Current Limiting (Fixed), Over Temperature | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

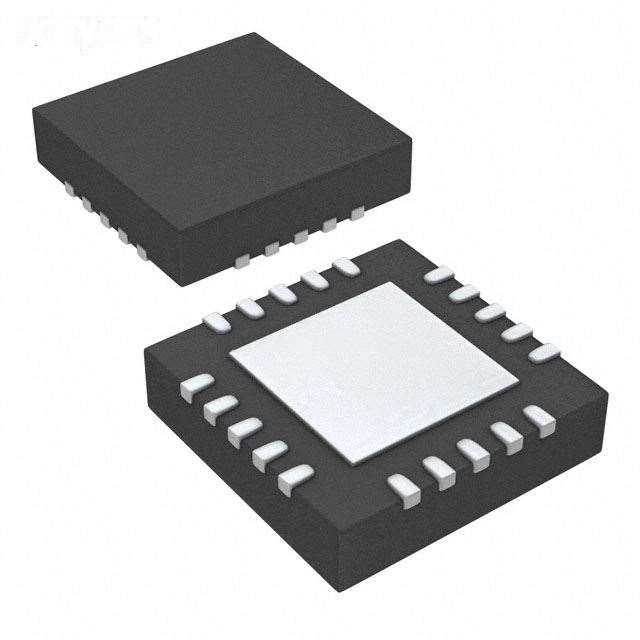

| Package / Case | 20-VFQFN Exposed Pad | |
| Supplier Device Package | 20-QFN (4x4) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPS2231MRGPRG4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPS2231MRGPRG4 is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of TPS2231MRGPRG4 is new and unused, you can buy TPS2231MRGPRG4 T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS2231MRGPRG4.
