| Manufacturer Part Number: | TPS544C20RVFT |
|---|---|
| Manufacturer: | T-I |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9760 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 30A 40-LFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Contains lead / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPS544C20RVFT Datasheet |
| Internal Part Number | 898-TPS544C20RVFT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | TPS544C20 Design with WEBENCH® Power Designer | |
| Reference Design Library | DC1582B-B(#1): 50 ~ 400mV in, 2.5 ~ 4.5V Out | |
| PCN Design/Specification | Copper Wire Base Metal 20/Mar/2015 Copper Bond Wire Update 21/Sep/2015 Revision 07/Mar/2016 | |
| Manufacturer Product Page | TPS544C20RVFT Specifications | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | T I | |
| Series | SWIFT™, D-CAP™, D-CAP2™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 18V | |
| Voltage - Output (Min/Fixed) | 0.6V | |
| Voltage - Output (Max) | 5.5V | |
| Current - Output | 30A | |
| Frequency - Switching | 250kHz ~ 1MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

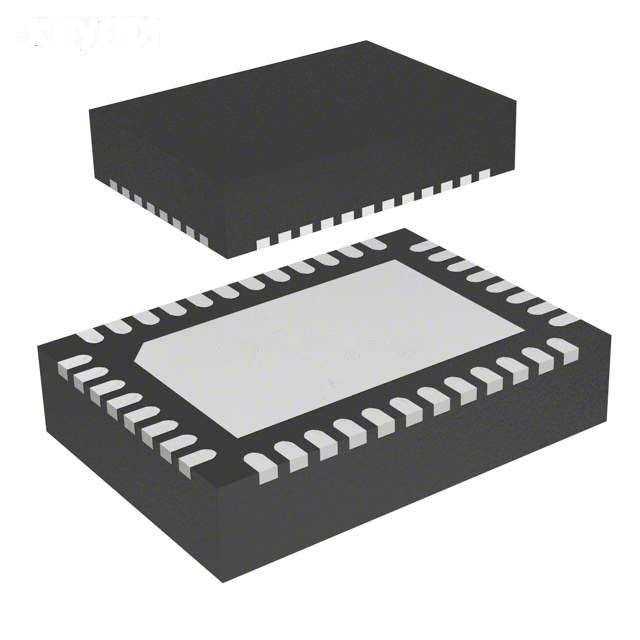

| Package / Case | 40-LFQFN Exposed Pad | |
| Supplier Device Package | 40-LQFN (7x5) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPS544C20RVFT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPS544C20RVFT is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of TPS544C20RVFT is new and unused, you can buy TPS544C20RVFT T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS544C20RVFT.
