| Manufacturer Part Number: | TPS65820RSHTG4 |
|---|---|
| Manufacturer: | T-I |
| Product Category: | PMIC - Battery Management |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Battery Multi-Function Controller IC Lithium-Ion/Polymer 56-VQFN (7x7) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPS65820RSHTG4 Datasheet |
| Internal Part Number | 898-TPS65820RSHTG4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Battery Management Part 1 Battery Management Part 2 Battery Management Part 3 Battery Management Part 4 Battery Management Part 5 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Battery Management | |
| Manufacturer | T I | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Function | Multi-Function Controller | |
| Battery Chemistry | Lithium-Ion/Polymer | |
| Number of Cells | 1 | |
| Fault Protection | Over Current, Over Voltage | |
| Interface | I²C, USB | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

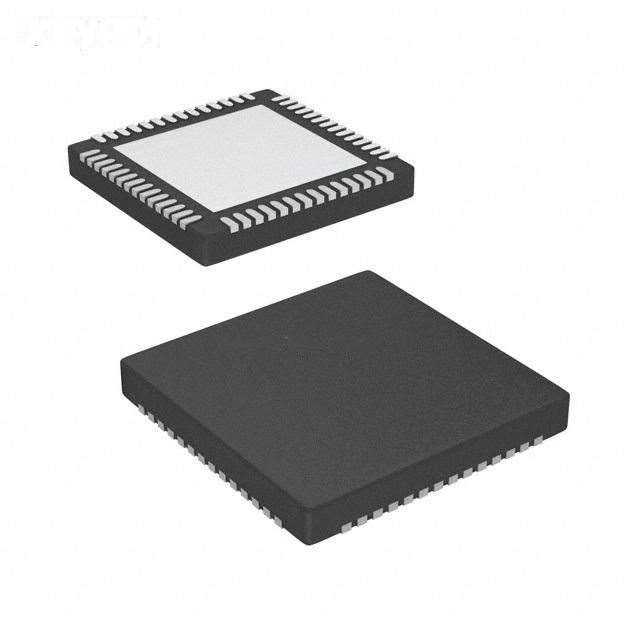

| Package / Case | 56-VFQFN Exposed Pad | |
| Supplier Device Package | 56-VQFN (7x7) | |
| Drawing Number | 296; 4207513; RSH; 56 | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPS65820RSHTG4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPS65820RSHTG4 is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of TPS65820RSHTG4 is new and unused, you can buy TPS65820RSHTG4 T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS65820RSHTG4.
